Laundry centre wiring carries power and control signals between the power connection, timer or control board, washer motor, dryer motor, pumps, switches, sensors, heating components, and safety devices. A damaged harness, burnt terminal, loose connector, broken ground wire, or worn power cord can stop one section of the appliance or prevent the complete unit from starting. Because every harness is routed and pinned for a specific model, the safest replacement is the exact part listed for your laundry centre.

Find the model number before ordering. The label may be inside the dryer door opening, under the washer lid, around the washer door frame, behind a control panel, or on the rear cabinet. If you are still identifying whether the issue involves wiring or another component, start with the broader laundry centre parts collection and compare the symptom with switches, motors, covers, and structural parts.

Which Laundry Centre Wire Part Do You Need?

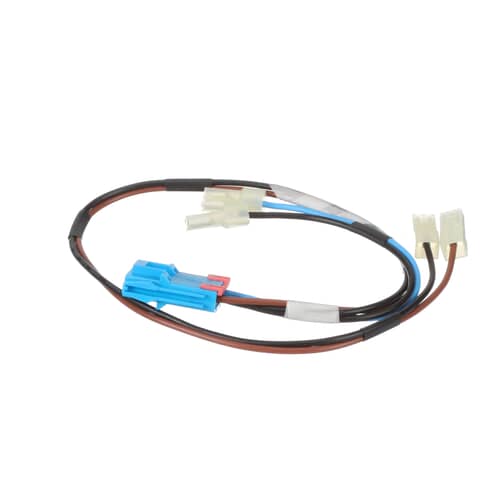

The term wire can describe a complete plug-in harness, a short jumper, a sensor lead, a ground wire, a terminal wire, or the external power cord. These parts may look simple, but connector shape, terminal position, insulation rating, wire length, and routing clips all matter. Avoid choosing by color alone because manufacturers can use similar colors for different circuits.

A wire fault near a selector or start control can feel like a bad switch. If the control only works when a knob is held, the cycle changes unexpectedly, or the unit starts intermittently, inspect both the connector and the laundry centre switch. Replacing a switch will not solve a burnt terminal or loose harness plug behind it.

Signs of a Damaged Harness or Power Connection

Look for melted connector housings, darkened terminals, brittle insulation, pinched wires, broken locking tabs, or a plug that no longer fits tightly. A hot electrical smell, sparking, repeated breaker trips, or heat around the terminal block requires immediate attention. Stop using the appliance and have the electrical system inspected before replacing parts.

• One function works while another section remains completely dead.
• The machine stops when the cabinet, door, or control panel is moved.
• A connector feels loose or will not lock into the mating socket.
• Insulation has rubbed through where the harness passes a frame edge.
• A terminal shows pitting, corrosion, soot, or melted plastic.
• The power cord or plug has visible cuts, heat marks, or bent prongs.

If the motor does not run, confirm that the drum and belt are not mechanically jammed before blaming the harness. A correct electrical signal cannot turn a seized drive system. Compare symptoms with the laundry centre motor and inspect its connector for heat damage, loose pins, or broken strain relief.

What Size Wire Does a Stackable Washer and Dryer Need?

So, what size wire do you need for a stackable washer and dryer? For the household branch circuit, the answer depends on the appliance rating, whether the dryer section is electric or gas, the required voltage and amperage, local code, wire material, and installation conditions. Many electric dryer or electric laundry-centre installations in the United States use a dedicated 240-volt, 30-amp circuit with appropriately sized conductors, while gas dryer sections and washer circuits commonly use 120-volt power. However, the appliance data plate and installation instructions are the controlling sources for your exact model.

This collection focuses on appliance-side replacement parts such as factory wire harnesses, terminal leads, ground wires, and power cords. It is not a substitute for choosing building wiring or modifying a wall circuit. If the wall outlet, breaker, branch circuit, or receptacle needs work, use a licensed electrician and follow current local requirements.

What Electrical Connection Does a Laundry Centre Use?

The electrical connection for a stacked laundry centre varies by design. An integrated electric unit may use one high-voltage dryer connection that also supplies the washer controls, while other configurations use separate washer and dryer connections. Gas models usually need electricity for controls, motor, and ignition even though gas provides the drying heat. Check the rating label and installation manual rather than assuming the plug type from appearance.

People also ask what kind of plug a washer-dryer combo uses. Compact all-in-one units may use a standard grounded 120-volt plug, while full-size electric laundry centres may use a 3-prong or 4-prong dryer cord depending on model and permitted installation. The cord must match both the appliance instructions and the receptacle. Never cut, adapt, or rewire a plug just to make it fit.

Check the Case, Cover, and Routing Clips

Wiring problems often start when a harness is routed incorrectly after another repair. The harness should follow the original path through clips, retainers, and protected openings. If the outer laundry centre case is bent or has a sharp edge, correct the structural damage before installing a new harness. Otherwise, vibration can wear through the replacement insulation.

Rear terminal and service areas are normally protected by a removable laundry centre cover. Replace a cracked, missing, or warped cover so the connection remains protected from accidental contact, lint, and movement. Do not operate the appliance with the terminal block or live wiring exposed.

Ground Wires, Fasteners, and Door Circuits

Ground wires often use a dedicated green screw or marked grounding point. If that fastener is missing or stripped, order the correct laundry centre screw rather than substituting an unverified screw. A grounding connection needs clean metal contact, correct placement, and secure torque. Paint, rust, or a loose fastener can prevent a reliable connection.

Door and lid circuits are also common wire-harness locations. If the appliance stops when the door moves, inspect the harness where it bends or passes through the opening. A damaged laundry centre door or misaligned latch can pull on the switch wiring and create an intermittent fault. Replace the mechanical cause as well as the electrical damage.

Safe Replacement and Ordering Checks

Disconnect the appliance from power before removing a panel, terminal cover, console, or harness. Verify power is off with appropriate test equipment. Photograph the original routing and connector positions before unplugging anything. Release locking tabs by the connector body, not by pulling on the wires. If a terminal overheated, inspect the mating component because replacing only one side can allow the new connector to overheat again.

Match the exact model number and manufacturer part number, then compare connector count, pin arrangement, wire length, mounting clips, and labels. GenuineReplacementParts helps you locate factory-specified harnesses and related parts so the replacement follows the original electrical design. If you see arcing, melted terminals, repeated breaker trips, or uncertain wiring, have the appliance serviced by a qualified technician.
