A freezer back wall that becomes heavily frosted, a compressor that never resumes after a defrost period, or repeated timer-area clicking can involve a GE refrigerator defrost timer. Confirm the refrigerator actually uses a separate timer. Many electronically controlled designs schedule defrost through a control board instead. A timer should be diagnosed with the heater, defrost limiter, wiring, compressor circuit, and frost pattern rather than replaced from one warm-compartment symptom.

A mechanical timer advances contacts between cooling and defrost. If its motor stalls or contacts fail, it can remain in cooling mode and never energize the heater, or remain in defrost and prevent the compressor from running. The GE refrigerator defrost timer WR09X10041 is appropriate only when the original timer number, terminal arrangement, mounting, and cycle specification match.

When replacement is actually needed

Replace a GE refrigerator defrost timer after testing shows it does not advance, fails to switch the correct contacts, has heat-damaged terminals, or stops repeatedly at the same point. Manually advancing a timer may temporarily restore cooling or start defrost, but that observation is diagnostic, not a permanent repair. Confirm the defrost heater and limiter can complete the circuit before blaming the timer for frost.

When the part number agrees, the GE refrigerator defrost timer WR09X10090 can address a failed matching timer. Do not swap wires by position from memory. Photograph each terminal and transfer one connector at a time with power disconnected. A timer with a different pin arrangement or cycle program can interrupt cooling or energize the wrong circuit.

Match the correct GE refrigerator part

Read the full timer number from its label and compare terminal count, terminal markings, mounting tabs, shaft or access opening, voltage, and whether the unit is mechanical or electronic. Similar housings can use different internal contact sequences. Also check whether the replacement includes a bracket or harness adapter and follow the instructions for any superseding timer.

The GE refrigerator defrost timer WR09X10194 should be matched as a complete control component. Do not use a laundry timer or general timing device that happens to fit the opening. The refrigerator’s defrost heater, compressor, and fan sequence depends on the specified contacts and timing.

Common problems and direct repair checks

Why does the GE refrigerator build frost again after thawing?

Test whether the heater receives power during a commanded defrost and whether the limiter and wiring are closed under the correct temperature condition. If the timer never advances into defrost and its number matches, the GE refrigerator defrost timer WR09X29230 may be the repair. A failed heater or sensor will still cause frost with a good timer.

Why does the refrigerator stay warm after a clicking sound?

Determine whether the compressor is being held off in defrost or failing to restart for another reason. Check timer contact output, overload, start relay, and control wiring. The GE refrigerator electronic defrost timer WR09X29252 belongs only in its matching electronic-timer circuit. Disconnect power if the timer stalls or terminals show heat damage.

Why does manually turning the timer make cooling restart?

That result suggests the timer or its drive may be stalled, but inspect the connector and test the contacts before replacement. A matched GE refrigerator defrost timer WR09X29886 can correct a failed timer. Do not rely on repeated manual advancement because food temperatures can rise and frost can return unpredictably.

Why does the timer click repeatedly behind the grille?

Occasional switching can be normal, but repeated audible clicking with no change in operation can indicate worn gears, poor contacts, or another component cycling power. Inspect the mounting and wiring. The GE refrigerator defrost timer WR9X489 should replace only the matching failed unit, not an unrelated relay that produces a similar sound.

Why does a new timer not enter defrost?

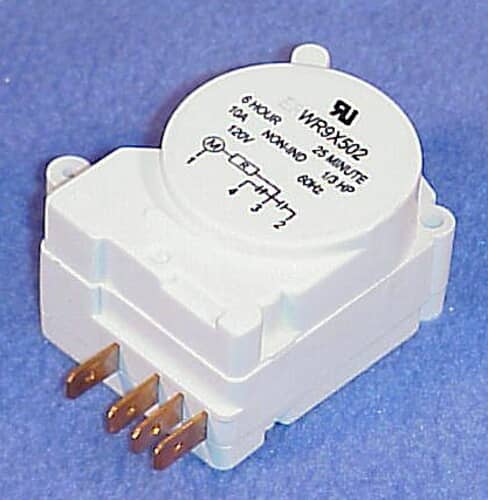

Verify the replacement number, terminal transfer, heater continuity, limiter condition, and timer power. The GE refrigerator defrost timer control WR9X502 cannot energize an open heater circuit. Stop if terminal markings differ or the refrigerator uses board-controlled adaptive defrost rather than a separate timer.

Related GE refrigerator part categories

If the timer enters defrost but the evaporator remains buried in ice, inspect the coil area and heater circuit. The GE refrigerator coils collection helps distinguish a damaged evaporator from a defrost-system failure that only covers the coil in frost.

When no separate timer is present, the defrost schedule may come from electronics. Review the GE refrigerator control boards collection only after sensors, heater, limiter, and wiring are tested and the board output is isolated.

Symptom and inspection guide

Installation and safety

1. Unplug the refrigerator and verify interior lights are off. Locate the timer from the parts layout and photograph the mounting and terminal markings.
2. Remove the timer cover and fasteners without pulling on wires. Transfer connectors one at a time to the matching marked terminals.
3. Secure the new timer, restore every protective cover, and keep wiring away from fans, hot tubing, and sharp edges.
4. Restore power and verify that cooling starts, the timer advances, and a later defrost cycle switches correctly. Monitor temperatures and frost rather than relying on one click.

Before ordering

A GE refrigerator defrost timer is only one part of the defrost circuit. Record whether the appliance is stuck in cooling or defrost, whether the heater receives power, and whether the limiter is closed at the test temperature. Do not bypass safety devices or leave a timer manually forced into a cycle. Match the printed part number and terminal markings, then confirm the repair over multiple cooling and defrost periods. If frost returns with a timer that advances correctly, continue diagnosis of the heater, sensor, gasket, drain, and airflow rather than replacing the timer again. Mark the date and temperature after installation, inspect the evaporator cover for returning frost, and confirm the compressor reliably restarts after defrost. These observations provide stronger evidence than a single manual timer movement. Keep food protected while performance is uncertain, and disconnect power if timer terminals become hot or produce an electrical odor.
