A frost-covered freezer wall, weak cooling with a partial frost pattern, or a water-storage coil that leaks must be separated into different repair paths. GE refrigerator coils and coil assemblies include sealed refrigerant evaporators as well as coiled water reservoirs. One absorbs cabinet heat through refrigerant tubing, while the other stores and chills dispenser water. Read the product description and locate the failed circuit before ordering.
An evaporator coated evenly with a light frost during operation can be normal, while a solid block of ice that stops airflow points toward a defrost or moisture problem. A bare patch or frost limited to one small section can indicate a sealed-system fault. Coil replacement should be considered only after qualified diagnosis confirms the refrigerant circuit, compressor operation, and actual condition of the assembly.
When replacement is actually needed
Do not replace an evaporator because frost is visible. First check door sealing, defrost heater, thermostat or sensor, drain, fan, and control operation. If the coil is punctured, corroded through, internally restricted, or leaking refrigerant, sealed-system service is required. Refrigerant recovery, brazing, evacuation, leak testing, and charging are not household repair steps, and sharp tools must never be used to remove ice from tubing.
A confirmed sealed-system failure may call for the GE refrigerator evaporator coil WR85X10017 when its tubing connections, geometry, and part number match. The technician must also identify why the original failed. Corrosion, rubbing contact, improper previous brazing, or an unresolved restriction can damage the replacement or prevent normal cooling.
Match the correct GE refrigerator part
Locate the coil part number on the removed assembly record or service parts information. Compare whether the listing is an evaporator, water-storage coil, coiled tank, or cleaning tool. For evaporators, match tubing layout, capillary and suction connections, brackets, sensor clips, and included heat shields. For water coils, match tube diameter, fittings, length, routing, and reservoir mounting.

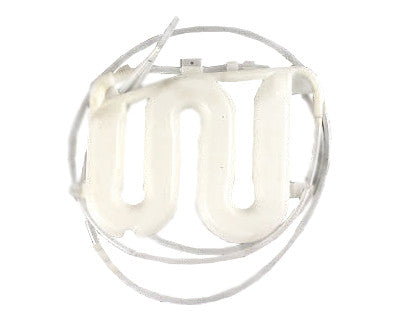

The GE refrigerator water-storage coil WR17X11140 belongs to the drinking-water circuit, not the refrigerant circuit. A leak from this tubing can create water under a drawer without changing the sealed-system frost pattern. Shut off the household water supply before working on a water-storage coil and inspect its fittings and protective cover.
Common problems and direct repair checks
Why is the GE refrigerator evaporator buried in ice?
Protect food, disconnect power, and let the ice melt without prying. Test the defrost heater, limiter, sensor, timer or controller, fan, drain, and door seal. A replacement GE refrigerator evaporator coil WR87X24995 is not the first repair for a defrost failure. Use it only if the coil itself is damaged and sealed-system diagnosis supports replacement.
Why is frost visible on only one part of the coil?
Confirm the compressor and fans have run long enough for a meaningful observation. A partial frost pattern can indicate low refrigerant, restriction, or inefficient compression, all of which require sealed-system diagnosis. If the assembly itself is confirmed faulty, the GE refrigerator evaporator coil WR85X10007 must match the exact tubing layout and printed part number rather than cabinet size.
Why is water leaking behind the vegetable drawers?

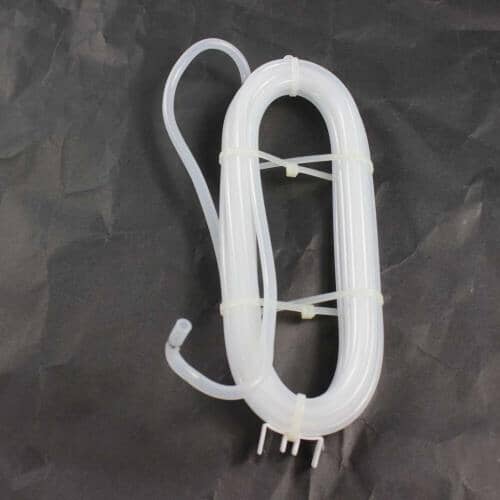

Dry the area and distinguish a drain overflow from a water-reservoir leak. Pressurize the drinking-water circuit only during a controlled test. The GE refrigerator coiled cold-water tank WR17X27627 is relevant when that matched reservoir is split or leaking. A leaking inlet fitting or valve must be corrected separately.
Why does dispenser water warm quickly or flow irregularly?
Check household pressure, filter restriction, kinks, freezing, and the condition of the water-storage coil. Air after service can cause temporary sputtering. If the matched coil has collapsed or leaks, the GE refrigerator water-storage coil WR17X11331 addresses that drinking-water component after the supply is shut off.
Why does the lower rear coil collect heavy dust?
Disconnect power and clean accessible condenser surfaces without bending fins or tubing. Use the GE refrigerator condenser-coil cleaning brush PM14X51 only where it can move freely without contacting wires or the fan. Restoring airflow can reduce compressor temperature and run time, but cleaning cannot repair a refrigerant leak.
Related GE refrigerator part categories
When an evaporator is cold but air cannot pass through it, inspect the GE refrigerator fans and blowers collection. A stalled fan, broken shroud, or frost-blocked blade can make a sound coil appear unable to cool the compartment.
Heavy recurring frost can involve the defrost sequence rather than the coil tubing. Compare the GE refrigerator defrost timers collection when the appliance uses a mechanical timer and testing shows the cycle does not advance correctly.
Symptom and inspection guide
|
Observed symptom
|
Check before ordering
|
Repair decision
|
|
Solid ice across evaporator
|
Defrost components, drain, gasket, airflow
|
Diagnose defrost failure before coil replacement
|
|
Frost on only a small section
|
Run time, compressor, refrigerant circuit
|
Qualified sealed-system diagnosis
|
|
Water leak from coiled reservoir
|
Tube wall, fittings, pressure
|
Shut off water and replace matched water coil
|
|
Dust on condenser area
|
Accessible coil surfaces and fan clearance
|
Clean without bending tubing or fins
|
Installation and safety
- Disconnect power before removing evaporator or lower-rear covers. Store food safely and allow ice to melt naturally rather than using sharp or high-heat tools.
- For a water-storage coil, close the household water shutoff, relieve pressure, mark every tube, and place towels beneath fittings before disconnection.
- Evaporator removal and installation require refrigerant recovery, brazing, evacuation, leak testing, and charging by a qualified technician using the specified service parts.
- After a water-coil repair, open the supply slowly, inspect all joints, purge air, and recheck for leaks. After sealed-system work, verify a normal frost pattern and stable temperatures.
Before ordering
The term GE refrigerator coil can describe two mechanically different systems. Confirm whether the observed liquid is household water or refrigerant oil residue and never open sealed refrigerant tubing for inspection. Document the frost pattern before thawing, but do not interpret it until the compressor and fan operating conditions are known. A water-storage coil must match its tube and fitting sizes, while an evaporator must match the complete sealed-system design. Treat a punctured evaporator, suspected refrigerant leak, or tubing brazing as professional work. Correct the defrost, airflow, corrosion, or rubbing condition that contributed to the failure before the replacement is placed back into service. After repair, verify stable compartment temperatures, normal fan airflow, dry water fittings, and clearance between tubing and every panel or bracket.
