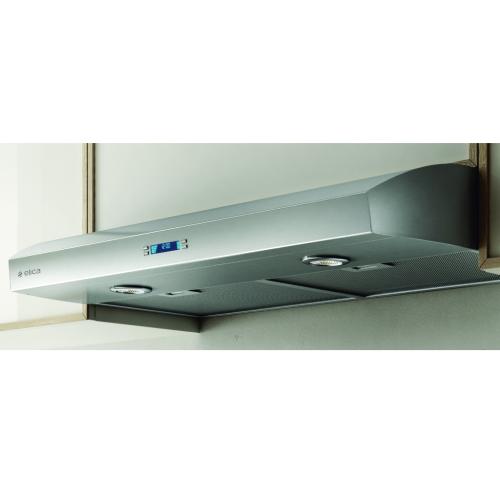

Elica EBL430WT 30 Inch Under Cabinet Range Hood with 4-Speed/430 CFM Blower

Model Number :EBL430WT
Appliance Type : Hood

30 Inch Under Cabinet Range Hood with 4-Speed/430 CFM Blower
With a compact 4 3/4" height, Bellagio is an ideal choice where under-cabinet space is. . . Read More

30 Inch Under Cabinet Range Hood with 4-Speed/430 CFM Blower
With a compact 4 3/4" height, Bellagio is an ideal choice where under-cabinet space is limited. An upgraded 4-speed, 430 CFM internal blower provides sufficient ventilation power for most kitchens. Bellagio also offers convenient halogen lights, dishwasher-safe, anodized aluminum mesh filters, and multi-function electronic controls with LCD display. Available in 30" or 36" width, Bellagio is designed for standard ducted installation, and can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.

Read Less
Specifications

Overview Blower Type (internal): 430 CFM, 4-Speed Internal Speed 1: 160 CFM Speed 2: 240 CFM Speed 3: 310 CFM Speed 4: 430 CFM Noise (sones) Working Speed: Min: 1.4, Max: 7.1 Controls: Multi-function electronic with LCD display Illumination: 2 Halogen Lights Filter Type: 2, Dishwasher-Safe, Anodized Aluminum Mesh Installation Type: Ducted or Recirculating Installation (Recirculating Kit Sold Separately) Duct Transition: 3 1/4" x 10" with Back Draft Damper (top or rear), or 7" Round (top) sold separately Electrical Specifications Volts: 120 V Amps: 3.6 A Frequency: 60 Hz Watts: 445 W Kits Optional Recirculating Kit: KIT02178 Optional Stainless Steel Mesh Grease Filter: KIT02591 Optional Backdraft Damper, 7" Round: KIT02723 Consumable Parts Replacement Grease Filter (1): GF04BA Replacement Carbon Filter (1): TM01FA Replacement Light Bulb (1): 2006BH Dimensions Product Width: 30" Product Depth: 20" Product Height: 4 3/4"

Features

4-Speed/430 CFM Blower Provides sufficient ventilating power for most kitchens. Multi-Function LCD Controls LCD function display with elegant blue illumination combined with low-profile, easy-to-clean touchpads is your interface with a multi-function control system, including heat guard, on/off control, four blower speeds, clock, 2 light intensities, filter sat Halogen Lighting Two light intensities allow you to set just the right mood. Dishwasher-Safe Mesh Filters Aluminum mesh filters are a step above the competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining, and provides durability to repeated cleanings in the dishwasher. Heat Guard A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (>158 degrees) and will automatically adjust the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level. CFM Reduction System Enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements. Ducted or Recirculating Installations The standard ducted method filters the air to remove grease, then vents the air outside the home. Optional Recirculating installation will filter and purify the air, then recirculate it back into the home.
