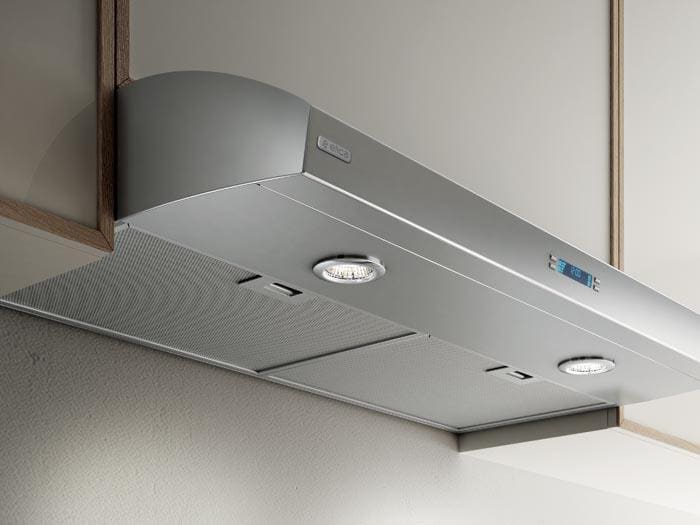

Elica EBL430SS 30 Inch Under Cabinet Range Hood with 4-Speed/430 CFM Blower, Multi-Function LCD Controls
Exploded Image
Brand Elica
Elica EBL430SS 30 Inch Under Cabinet Range Hood with 4-Speed/430 CFM Blower, Multi-Function LCD Controls
100% Original 100%
Original
Fast Shipping Fast
Shipping
Brand Warranty Brand
Warranty
Easy Returns Easy
Returns
Certificate Elica
Exploded Image

Add To Profile

30 Inch Under Cabinet Range Hood with 4-Speed/430 CFM Blower
With a compact 4 3/4" height, Bellagio is an ideal choice where under-cabinet space is. . . Read More

30 Inch Under Cabinet Range Hood with 4-Speed/430 CFM Blower
With a compact 4 3/4" height, Bellagio is an ideal choice where under-cabinet space is limited. An upgraded 4-speed, 430 CFM internal blower provides sufficient ventilation power for most kitchens. Bellagio also offers convenient halogen lights, dishwasher-safe, anodized aluminum mesh filters, and multi-function electronic controls with LCD display. Available in 30" or 36" width, Bellagio is designed for standard ducted installation, and can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.

Read Less
Specifications

Overview Blower Type (internal): 430 CFM, 4-Speed Internal Speed 1: 160 CFM Speed 2: 240 CFM Speed 3: 310 CFM Speed 4: 430 CFM Noise (sones) Working Speed: Min: 1.4, Max: 7.1 Controls: Multi-function electronic with LCD display Illumination: 2 Halogen Lights Filter Type: 2, Dishwasher-Safe, Anodized Aluminum Mesh Installation Type: Ducted or Recirculating Installation (Recirculating Kit Sold Separately) Duct Transition: 3 1/4" x 10" with Back Draft Damper (top or rear), or 7" Round (top) sold separately Electrical Specifications Volts: 120 V Amps: 3.6 A Frequency: 60 Hz Watts: 445 W Kits Optional Recirculating Kit: KIT02178 Optional Stainless Steel Mesh Grease Filter: KIT02591 Optional Backdraft Damper, 7" Round: KIT02723 Dimensions Product Width: 30" Product Depth: 20" Product Height: 4 3/4"

Features

4-Speed/430 CFM Blower Provides sufficient ventilating power for most kitchens. Multi-Function LCD Controls LCD function display with elegant blue illumination combined with low-profile, easy-to-clean touchpads is your interface with a multi-function control system, including heat guard, on/off control, four blower speeds, clock, 2 light intensities, filter sat Halogen Lighting Two light intensities allow you to set just the right mood. Dishwasher-Safe Mesh Filters Aluminum mesh filters are a step above the competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining, and provides durability to repeated cleanings in the dishwasher. Heat Guard A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (>158 degrees) and will automatically adjust the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level.
