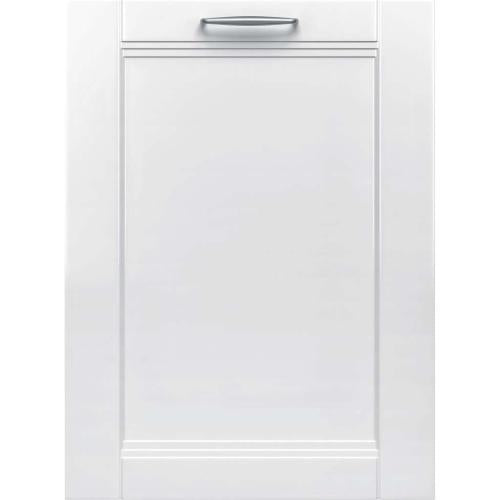

Bosch SHV863WB3N/01 300 Series Dishwasher 24''
Bosch SHV863WB3N/01 300 Series Dishwasher 24''
Exploded Image
Brand Bosch
Bosch SHV863WB3N/01 300 Series Dishwasher 24''
100% Original 100%
Original
Fast Shipping Fast
Shipping
Brand Warranty Brand
Warranty
Easy Returns Easy
Returns
Certificate Bosch
Exploded Image

Add To Profile

Bosch SHV863WB3N/01 300 Series Dishwasher 24''

Model Number :SHV863WB3N/01
Appliance Type : Dishwasher

This 24" 300 series dishwasher by Bosch comes with 16 place settings, 5 wash cycles and 5 options. It also features a 3rd rack, 44 dBA, FlexSpace tines. . . Read More

This 24" 300 series dishwasher by Bosch comes with 16 place settings, 5 wash cycles and 5 options. It also features a 3rd rack, 44 dBA, FlexSpace tines, Speed60 option for 1 hour wash and is Energy Star.

RackMatic Adjustable Upper Rack
The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

When your dishes are done, so are you.
With Bosch PrecisionWash, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.

InfoLight -a light that tells you when your dishwasher is running
InfoLight projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.

The quietest dishwasher brand in the U.S.*
Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2017.

Quality is in the details.
Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.

3rd Rack
Their 3rd rack offers easy-loading silverware tines for cleaning flatware. The unqiue v-shape of the rack provides the perfect space for large utensils and ramekins, in the center, while providing space for wine glasses on the sides on the middle rack. An ingenious use of space that offers a total of 30% more loading area.

ExtraShine Option
Used in combination with a wash cycle (except Rinse),the Extra Shine option helps dishes and glassware come out exceptionally clean with perfect shine by raising the temperature and extending the drying time.

Extra Dry
Used in combination with a wash cycle, the Extra Dry option raises the temperature and extends the drying time to further enhance drying results.

ENERGY STAR
Energy Star is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency.

Read Less
General
  • Installation Type
  • Full-integrated
Number of place settings
  • 16
List of programs
  • 1 Hour, Auto, Normal, Pots and Pans, Rinse
Cycle Options
  • Extra dry, Extra Scrub, half load, Sanitation
Display
  • Yes
Silence level
  • 44 dB(A) re 1 pW
Third Rack
  • Standard Third Rack
Interior Light
  • No
Removable top
  • No
Power Cord Length
  • 66 7/8Inch
Connectivity
  • Home Connect
  • No
Size and weight
  • Overall appliance dimensions (HxWxD) (in)
  • 33 7/8Inch x 23 9/16Inch x 23 1/16Inch
Adjustable plinth
  • No
Net weight
  • 91.000 lbs
Size and weight
  • Programmes
  • Status indicator
  • End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal
List of programs
  • 1 Hour, Rinse
Program 1
  • Pots and Pans
Program 2
  • Auto
Program 3
  • Normal
Program 4
  • 1 Hour
Program 5
  • Rinse
Programme duration, programme1 (min.)
  • 110-135
Programme duration, programme2 (min.)
  • 105-129
Programme duration, programme3 (min.)
  • 130-135
Programme duration, programme4 (min.)
  • 60
Programme duration, programme5 (min.)
  • 9
Reference programme
  • Regular US
Safety
  • AquaStop
  • No
ChildLock
  • No
Consumption values
  • Glass protection
  • No
Total annual water consumption
  • 624 gallons
Maximum temperature for water intake (Degree Celsius)
  • 60 Degree Celsius
Connection
  • Watts
  • 1,300 W
Power Cord Length
  • 66 7/8Inch
Fuse protection
  • 12 A
Plug type
  • fixed connection, Nema5-15P
Construction type
  • Control panel shape
  • Frame MK minus
Color / Control Panel
  • Stainless steel colour, lacqu.
Construction type
  • Built-in
Panel ready
  • Not possible
Drying system
  • Inherent heat
Concealed heating element
  • Yes
Installation Type
  • Full-integrated
Tub material
  • Stainless steel
Water Softener
  • No
Key Features
  • 44 dBA- Quietest Dishwasher Brand.
3rd Rack for Additional Loading Capacity
    InfoLight Beams on Floor to Indicate Dishwasher is Running
      RackMatic on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
        AquaStop Leak Protection Works 24/7
          Design
          • Full Size Stainless Steel Tall Tub Installs Perfectly Flush
          3rd Rack for Additional Loading Capacity
            16 Place Setting Capacity
              LED Remaining Time Display
                RackMatic on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
                  Flexible Silverware Basket Can be Split into Two Pieces and Placed Anywhere for Added Flexibility
                    Performance
                    • 44 dBA- Quietest Dishwasher Brand.
                    5 Wash Cycles and 5 Options
                      Detergent Tray Optimizes Detergent Dissolving
                        Speed60 gets your dishes from dirty to dry in about an hour.
                          Extra Dry Option for Better Drying Results
                            Load Size Sensor Automates Wash Temperature
                              Sanitize Option Eliminates Bacteria and Enhances Drying Results
                                ExtraScrub option increases pressure and temperature in the entire lower rack for hard to remove food stains.
                                  Efficiency
                                  • 269 kwh/yr - Energy Star
                                  Convenience
                                  • 24 h Delay Start Timer
                                  AquaStop Leak Protection Works 24/7
                                    Self-Latching Door
