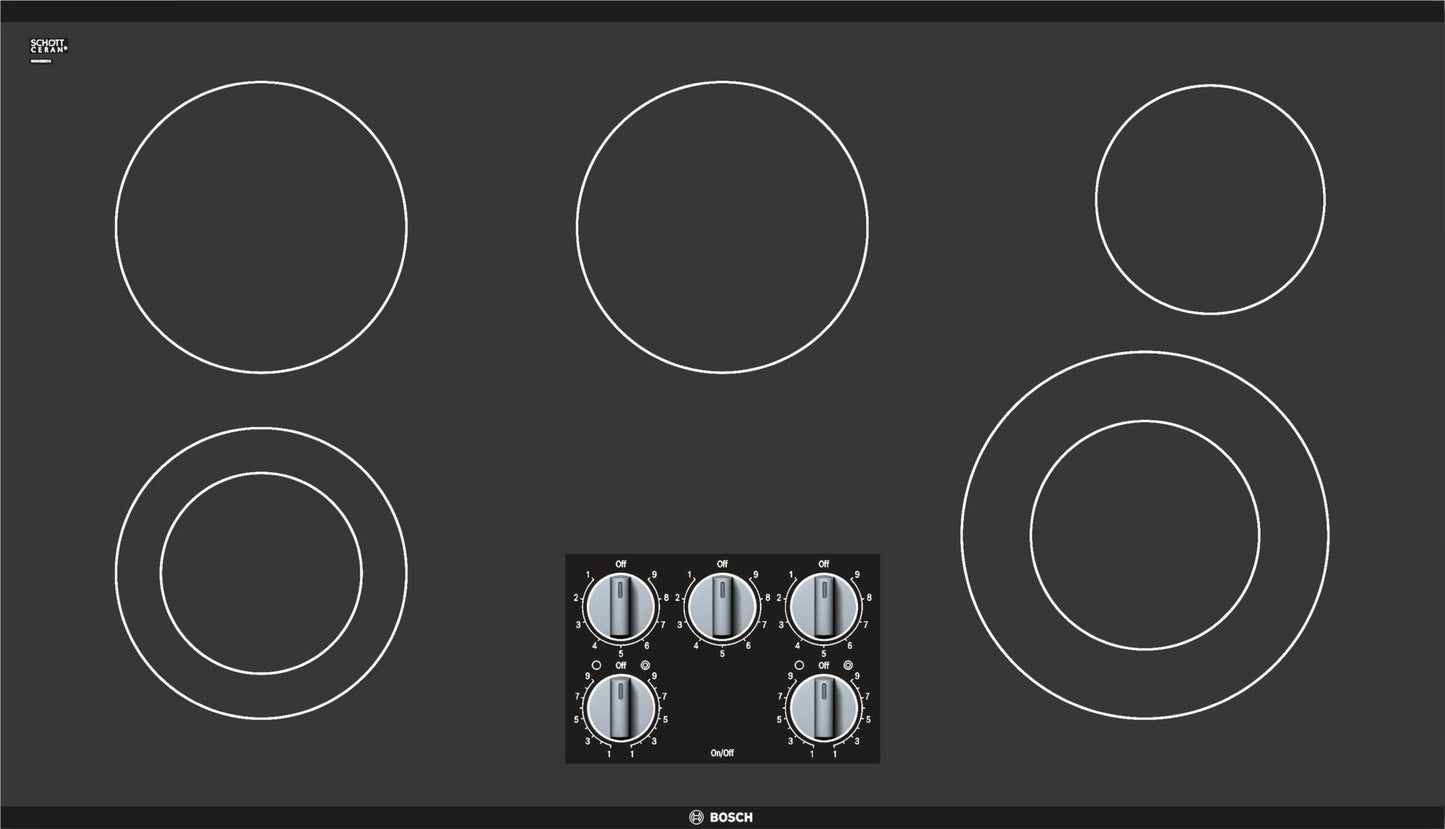

Bosch NEM5666UC/01 500 Series Electric Cooktop 36'' Black, Surface Mount Without Frame
Exploded Image
Brand Bosch
Bosch NEM5666UC/01 500 Series Electric Cooktop 36'' Black, Surface Mount Without Frame
100% Original 100%
Original
Fast Shipping Fast
Shipping
Brand Warranty Brand
Warranty
Easy Returns Easy
Returns
Certificate Bosch
Exploded Image

Add To Profile

Bosch NEM5666UC/01 500 Series Electric Cooktop 36'' Black, Surface Mount Without Frame

Model Number :NEM5666UC/01
Appliance Type : Cooktop

Ceramics glass is much more slim and durable with better vertical conduction.

General

  • Energy source
  • Electric
Type of control
  • Fixed, front, Push-to-turn, Sword knobs
Construction type
  • Color of surface
  • Black
Construction type
  • Built-in
Design - line
  • Frameless
Number of electric elements
  • 0
Number of electric cooking zones
  • 5
Type of frame
  • Frameless
Number of gas burners
  • 0
Number of halogen elements
  • 0
Installation Type
  • Built-in
Total number of cooktop burners
  • 5
Number of radiant elements
  • 5
Number of electric warming zones
  • 0
Size and weight
  • Overall appliance dimensions (HxWxD) (in)
  • 1/4" + 4 x 37" x 21 1/4"
Net weight
  • 30.000 lbs
Minimum distance from counter front (in)
  • 2 1/4
Minimum distance from rear wall (in)
  • 2
Size and weight
  • Cooking zone 1
  • Dimension of 1st heating element (in)
  • 5" ; 7"
Location of 1st heating element
  • front left
Power of heating element (kW)
  • 0.7 ; 1.7 kW
Type of heating element
  • Radiant heating
Cooking zone 2
  • Location of 2nd heating element
  • center left
Cooking zone 3
  • Dimension of 3rd heating element (in)
  • 7"
Location of 3rd heating element
  • back left
Power of 3rd heating element (kW)
  • 1.8 kW
Type of 3rd heating element
  • Radiant heating
Cooking zone 4
  • Location of 4th heating element
  • middle back
Cooking zone 5
  • Dimension of 5th heating element (in)
  • 6"
Location of 5th heating element
  • back right
Power of 5th heating element (kW)
  • 1.2 kW
Cooking zone 6
  • Location of 6th heating element
  • center right
Cooking zone 7
  • Dimension of 7th heating element (in)
  • 6" ; 9"
Location of 7th heating element
  • front right
Power of 7th heating element (kW)
  • 1.1 ; 2.5 kW
Type of 7th heating element
  • Radiant heating
Cooking zone 8
  • Location of 8th heating element
  • front middle / central
Cooking zone 9
  • Dimension of 9th heating element (in)
  • 7"
Location of 9th heating element
  • front centre/cent
Power of 9th heating element (kW)
  • 1.8 kW
Type of 9th heating element
  • Radiant heating
Safety
  • Residual heat indicator
  • Separate
Connection
  • Frequency
  • 60 Hz
Energy source
  • Electric
Watts
  • 9,000 W
Design
  • Black-Glass Seamless Design
Cooktop Design Coordinates with Bosch Ovens and Ventilation
    Performance
    • Variable 9-Stage Power Settings For Each Zone
    2,500W Front Right Burner for Faster Boil Times
      Dual Elements Offer the Capability to use Multiple Pan Sizes
        Safety
        • Residual Heat Indicator - Warns if Cooktop is Warm or Hot

        General
        • Energy source
        • Electric
        Type of control
        • Fixed, front, Push-to-turn, Sword knobs
        Construction type
        • Color of surface
        • Black
        Construction type
        • Built-in
        Design - line
        • Frameless
        Number of electric elements
        • 0
        Number of electric cooking zones
        • 5
        Type of frame
        • Frameless
        Number of gas burners
        • 0
        Number of halogen elements
        • 0
        Installation Type
        • Built-in
        Total number of cooktop burners
        • 5
        Number of radiant elements
        • 5
        Number of electric warming zones
        • 0
        Size and weight
        • Overall appliance dimensions (HxWxD) (in)
        • 1/4" + 4 x 37" x 21 1/4"
        Net weight
        • 30.000 lbs
        Minimum distance from counter front (in)
        • 2 1/4
        Minimum distance from rear wall (in)
        • 2
        Size and weight
        • Cooking zone 1
        • Dimension of 1st heating element (in)
        • 5" ; 7"
        Location of 1st heating element
        • front left
        Power of heating element (kW)
        • 0.7 ; 1.7 kW
        Type of heating element
        • Radiant heating
        Cooking zone 2
        • Location of 2nd heating element
        • center left
        Cooking zone 3
        • Dimension of 3rd heating element (in)
        • 7"
        Location of 3rd heating element
        • back left
        Power of 3rd heating element (kW)
        • 1.8 kW
        Type of 3rd heating element
        • Radiant heating
        Cooking zone 4
        • Location of 4th heating element
        • middle back
        Cooking zone 5
        • Dimension of 5th heating element (in)
        • 6"
        Location of 5th heating element
        • back right
        Power of 5th heating element (kW)
        • 1.2 kW
        Cooking zone 6
        • Location of 6th heating element
        • center right
        Cooking zone 7
        • Dimension of 7th heating element (in)
        • 6" ; 9"
        Location of 7th heating element
        • front right
        Power of 7th heating element (kW)
        • 1.1 ; 2.5 kW
        Type of 7th heating element
        • Radiant heating
        Cooking zone 8
        • Location of 8th heating element
        • front middle / central
        Cooking zone 9
        • Dimension of 9th heating element (in)
        • 7"
        Location of 9th heating element
        • front centre/cent
        Power of 9th heating element (kW)
        • 1.8 kW
        Type of 9th heating element
        • Radiant heating
        Safety
        • Residual heat indicator
        • Separate
        Connection
        • Frequency
        • 60 Hz
        Energy source
        • Electric
        Watts
        • 9,000 W
        Design
        • Black-Glass Seamless Design
        Cooktop Design Coordinates with Bosch Ovens and Ventilation
          Performance
          • Variable 9-Stage Power Settings For Each Zone
          2,500W Front Right Burner for Faster Boil Times
            Dual Elements Offer the Capability to use Multiple Pan Sizes
              Safety
              • Residual Heat Indicator - Warns if Cooktop is Warm or Hot
