Oven circuit boards control the cooking functions, timing, temperature signals, display, relays, and heating commands inside many modern ovens. If your oven powers on but will not heat correctly, shows error codes, has a blank display, or will not respond to the buttons, the oven control board may be one of the first parts to inspect.

At GenuineReplacementParts, you can search by your oven model number to find the correct circuit board, relay board, clock control, or related electronic control component. Oven boards are not universal. The mounting style, wiring harness, voltage rating, relay layout, and display connection must match your exact appliance so the oven can communicate safely with the heating system.

How an oven circuit board helps the oven work

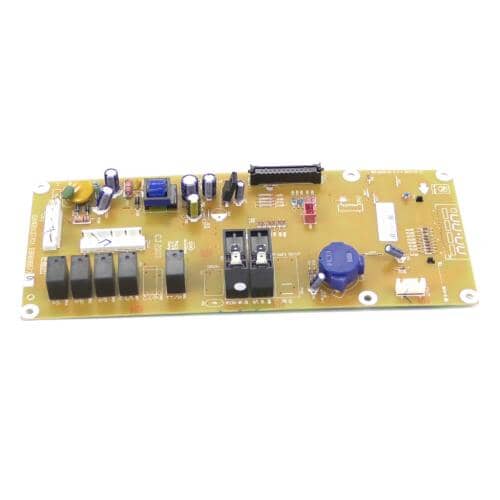

The oven circuit board is often called the electronic control board, oven control board, clock board, PCB, or control module. It receives input from the keypad or control panel, reads the temperature signal from the oven sensor, and sends power through relays to the bake element, broil element, convection fan, light, latch, or igniter circuit depending on the cooking mode. When the board is healthy, the oven heats when requested, cycles off at the right temperature, and shows accurate timing or error information.

So, what are the things on a circuit board called? Most oven boards include relays, resistors, capacitors, transformers, solder joints, connectors, and microprocessor circuits. You do not need to identify every tiny component before ordering a replacement board, but it helps to understand that one damaged relay or burnt connector can affect the entire cooking cycle. If the buttons respond but the oven never heats, the issue may be the board, the sensor, or the element circuit. If the display is dead, the board may not be receiving or distributing power correctly.

If temperature swings are the main symptom, check the oven sensor before replacing the board. A faulty sensor can send bad temperature readings to a good board, which can make the oven overheat, underheat, or shut off too early.

Signs your oven control board may need replacement

A failing control board can show up in several ways. Some ovens display fault codes, some lose the clock or display, and some start heating unpredictably. A board problem may also look like a bad element because the board controls whether power reaches the heating parts. If the bake and broil elements both stop responding, the control board or incoming power circuit is more likely than two separate elements failing at the same time.

So, is it worth replacing an oven control board? It can be worth replacing when the oven body, door, racks, and heating components are still in good condition and the correct OEM board is available. A matched board can restore normal baking, broiling, timer, and display operation without replacing the full appliance. If the oven is older and several expensive parts are failing together, compare the board cost with the overall age and condition of the unit before ordering.

The most helpful step before buying is to locate your model number. You will usually find it around the oven door frame, along the cavity edge, behind the lower drawer, or on the side trim of a wall oven. Use the full model number because one digit can change the board style, wire plug, or overlay pairing.

What to check before ordering a new board

Circuit board symptoms can overlap with other oven repairs. A blank display may come from a failed board, but it can also come from a loose wire connection, failed thermal fuse, damaged terminal block, or incoming power issue. An oven that gets too hot may involve the board, but it may also be a bad temperature sensor. An oven that will not lock or unlock after self-cleaning may involve the latch circuit rather than the main board.

If you see burnt wires, melted connectors, or damaged terminals behind the control panel, review the oven wire collection as part of the repair. Replacing a board without fixing a damaged connector can cause the new board to fail again. The same applies to a loose harness plug, burned relay terminal, or overheated element receptacle.

So, can an oven control board be repaired? Some boards can be repaired by specialty electronics services, but for a replacement-parts shopper, the safest route is usually to order the exact board or board kit listed for the oven model. Rebuilt or repaired boards may be useful when a factory part is discontinued, but any repair should match the original board number, relay configuration, and wiring layout.

Ordering tips for a safe, correct fit

How much does it cost to replace an oven circuit board? The board itself can vary widely by brand and model, and labor adds more if a technician installs it. The best way to avoid wasted cost is to match the exact model number, compare the part image with your old board, and confirm whether your oven needs a board only, a board with overlay, or a full control panel assembly.

If your control buttons are cracked or the display window is damaged, the part you need may be an oven panel, not only the circuit board behind it. Some ovens separate the control board from the touchpad, while others combine them into one assembly. Read the product details closely so the replacement includes every piece needed for your repair.

For best results, disconnect power before inspecting the control area, photograph all wire connections before removing the old board, and transfer connectors one at a time when installing the replacement. If the oven uses gas, or if wiring appears burned, brittle, or modified, professional service is the safer choice.
