A ge air conditioner sensors and thermostats fault should be diagnosed from the exact function that stopped, the conditions that trigger it, and the surrounding parts that may be loading or misaligning the component. This collection includes ambient-temperature sensors, coil-temperature sensors, pipe and discharge sensors, thermostats and thermal switches, and sensor clips and lead assemblies. Similar-looking pieces can operate at different ratings or sit in different positions, so appearance is only a secondary check after the complete part number is known.
Begin with the machine disconnected from power and document the symptom before moving anything. Inspect connector corrosion, damaged insulation, shifted clips, poor thermal contact, open or shorted elements, implausible resistance changes, and moisture around the sensing point. Replacement becomes reasonable when the defect is repeatable, the failed surface or electrical measurement is confirmed, or the part can no longer hold its specified position. Avoid replacing the category part solely because the appliance displays a broad symptom.
Determine what failed before replacing the part
Separate a component failure from an installation, supply, control, or adjacent-part problem. In this category, the part must report room, coil, pipe, discharge, and protection temperatures or open and close a circuit at a calibrated condition. Record when the symptom begins, which direction or cycle is active, whether temperature or load changes it, and whether the fault disappears after cooling or repositioning. Those observations narrow the diagnosis without bypassing a safety device.
For ge air conditioner sensors and thermostats, inspect the complete mechanical and electrical path. A loose mount, obstructed air or water path, shifted seal, damaged harness, or incorrect command can make a sound component look defective. Review the GE air conditioner control boards and electrical controls when the evidence points beyond the selected category.
When replacement is actually needed
Replace the identified part when cracks, deformation, open windings, leakage, burned terminals, loss of calibrated response, excessive play, or another confirmed defect prevents its normal function. An incorrectly placed sensor can cause coil icing, missed protection, erratic fan speed, or premature compressor shutdown. Stop use when movement, water, heat, or electricity can extend the damage.
For the first confirmed repair path, compare the original with the GE air conditioner ambient-temperature sensor WJ26X24066. Use the linked entry only when its full part number matches the installed identifier. Inspect the mating surface and any connector, bracket, seal, clip, or fastener that could cause the replacement to fail again.
Match the correct part by number and geometry
Copy every character from the original label, molded mark, or parts documentation. Then compare sensor curve, resistance range, lead length, connector pinout, clip position, probe shape, insulation, and calibrated temperature point. A close visual match may still change load, timing, sealing, flow, or electrical behavior. Do not enlarge holes, move connector pins, trim seals, or bend a calibrated part to make another identifier fit.

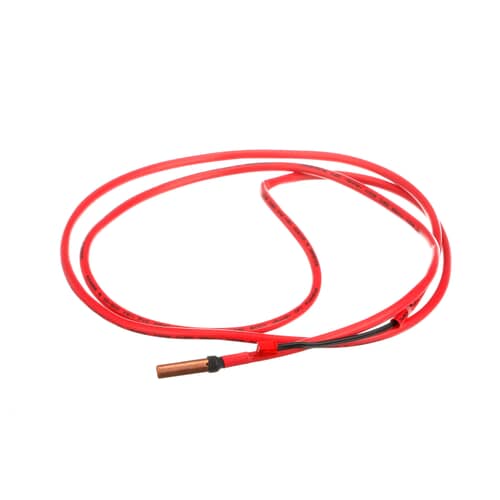

The GE air conditioner coil-temperature sensor WJ26X24067 illustrates why the number controls the choice. Confirm what is included with the listing and what must transfer from the old assembly. Reuse only undamaged transfer pieces that the service procedure identifies, and keep position-specific components in their original side or corner.
Check related systems before ordering
A fault can travel through more than one assembly. Check supply, supports, clearances, seals, sensors, controls, and the driven or mating component before authorizing the replacement. When the symptom involves the neighboring system, use the GE air conditioner coils and tubes to keep the diagnosis tied to the actual failed function.
For ge air conditioner sensors and thermostats, also compare the GE air conditioner compressors when wear or misalignment can originate there. Testing adjacent parts is not an excuse to replace several assemblies together. It prevents a verified new part from being overloaded, misaligned, overheated, or exposed to the same leak.
Installation planning and final checks
Plan the sequence before removing the old component. Photograph routing, installed side, fastener order, seals, and reference marks. During reassembly, return the probe to the original clip or pocket, route the lead away from sharp metal and motors, and verify readings through a full operating cycle. Keep tools and replacement parts away from unprotected electrical, refrigerant, water, glass, and moving surfaces.
After reassembling the ge air conditioner sensors and thermostats, complete a controlled, attended test that reproduces the original complaint without overloading the appliance. Check for leaks, abnormal sound, heat, odor, rubbing, repeated resets, and correct stopping behavior. Shut the machine down immediately if the repaired area moves out of position or a protective device operates.
Common problems and direct repair checks
Why does the GE air conditioner show the wrong room temperature?
Check whether the ambient probe is touching a cold cabinet surface, receiving direct discharge air, or sitting near heat from electronics. Then compare its resistance with the specified temperature chart. Match the confirmed failure to the GE air conditioner vapor-pipe sensor WJ26X29071 only after the original part number and surrounding fit have been checked.
Why does the GE air conditioner coil keep icing even with a clean filter?
Confirm fan speed and refrigerant condition, then inspect the coil sensor position and contact. A detached or inaccurate probe can delay protective cycling. Match the confirmed failure to the GE air conditioner sensor clip WJ26X29675 only after the original part number and surrounding fit have been checked.
Why does the GE air conditioner stop on a temperature fault?
Inspect the cited sensor circuit for open leads, shorted insulation, loose pins, moisture, and implausible readings. Resetting power does not repair a recurring circuit fault. Match the confirmed failure to the GE air conditioner 20K sensor WJ27X10089 only after the original part number and surrounding fit have been checked.
Why does the GE air conditioner cycle too often?
A thermostat or sensor can react to the wrong air stream, but oversizing, poor airflow, voltage variation, or control delay can also shorten cycles. Record the temperature and timing pattern. Match the confirmed failure to the GE air conditioner thermostat WP23X10025 only after the original part number and surrounding fit have been checked.
Symptom and inspection guide
| Observed problem |
Direct check |
Part area |
| Why does the GE air conditioner show the wrong room temperature |
Check whether the ambient probe is touching a cold cabinet surface, receiving direct discharge air, or sitting near heat from electronics |
ambient-temperature sensors |
| Why does the GE air conditioner coil keep icing even with a clean filter |
Confirm fan speed and refrigerant condition, then inspect the coil sensor position and contact |
coil-temperature sensors |
| Why does the GE air conditioner stop on a temperature fault |
Inspect the cited sensor circuit for open leads, shorted insulation, loose pins, moisture, and implausible readings |
pipe and discharge sensors |
| Why does the GE air conditioner cycle too often |
A thermostat or sensor can react to the wrong air stream, but oversizing, poor airflow, voltage variation, or control delay can also shorten cycles |
thermostats and thermal switches |
Part-number and fit checklist
| Check |
What to verify |
| Identifier |
Complete part number and every suffix. |
| Function |
Report room, coil, pipe, discharge, and protection temperatures or open and close a circuit at a calibrated condition. |
| Geometry and rating |
Sensor curve, resistance range, lead length, connector pinout, clip position, probe shape, insulation, and calibrated temperature point. |
| Surroundings |
Connector corrosion, damaged insulation, shifted clips, poor thermal contact, open or shorted elements, implausible resistance changes, and moisture around the sensing point. |
| Post-repair |
Return the probe to the original clip or pocket, route the lead away from sharp metal and motors, and verify readings through a full operating cycle. |
Installation workflow
- Disconnect all relevant power and water or refrigerant sources before accessing ge air conditioner sensors and thermostats.
- Photograph the installed ambient-temperature sensors, its routing, orientation, fasteners, and reference marks.
- Inspect the mating component around the coil-temperature sensors and correct the cause of the original damage.
- Match the complete ge air conditioner sensors and thermostats part number, geometry, ratings, position, and included pieces.
- Install the pipe and discharge sensors without forcing, restore guards and clearances, and secure every connector or clamp.
- Run an attended ge air conditioner sensors and thermostats test and stop for leakage, rubbing, odor, heat, or a protective trip.
Installation and safety
An incorrectly placed sensor can cause coil icing, missed protection, erratic fan speed, or premature compressor shutdown. Disconnect and verify the energy source before access. Do not bypass an interlock, thermal limit, pressure device, or ground. Work involving live diagnosis, sealed refrigerant systems, heavy suspended assemblies, or complex structural disassembly belongs to a qualified technician.
Before ordering
- Identify the exact failed ambient-temperature sensors function and installed position.
- Match the complete ge air conditioner sensors and thermostats part number before comparing appearance.
- Inspect supports, seals, wiring, controls, and clearances adjacent to the coil-temperature sensors.
- Confirm what the pipe and discharge sensors listing includes and which pieces must transfer.
- Plan a safe ge air conditioner sensors and thermostats test that reproduces the original symptom.
