Product Description

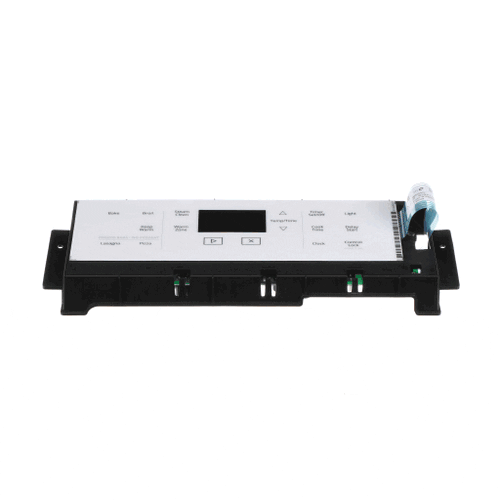

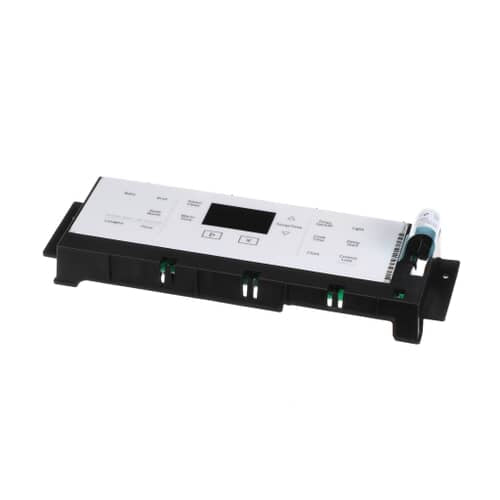

The Whirlpool Electric Range Touchpad Control Board – W11546066 is an authentic OEM replacement designed to restore your range’s full functionality and performance. Compatible with Whirlpool model WFE505W0HS0, it enables accurate temperature adjustments and reliable operation of oven and stovetop controls. If your existing touchpad is unresponsive, inconsistent, or has display issues, this replacement returns your appliance to factory-grade performance with dependable precision and durability.
Key Features of Whirlpool Electric Range Touchpad Control Board – W11546066
- Genuine OEM Replacement – Manufactured by Whirlpool for an exact fit and dependable function.
- Accurate Temperature Control – Enables precise heat regulation across all cooking modes.
- Durable Build – High-quality components resist heat and repeated use over time.
- Plug-and-Play Installation – Straightforward replacement requires minimal tools or effort.
- Restores Cooking Performance – Fixes temperature fluctuations, unresponsive controls, or display failures.
- Model-Specific Fit – Designed specifically for Whirlpool Electric Range model WFE505W0HS0.
Technical Specifications of Whirlpool Electric Range - Oven/Stove Touchpad Control Board - White WFE505W0HS0
- Part Number: W11546066
- Brand: Whirlpool
- Type: Touchpad control board / electronic range interface
- Material: Durable plastic housing with electronic components
- Dimensions: 6.2″ × 3.8″ × 1.1″
- Weight: Approx. 0.3 lbs
- Voltage: Compatible with 120V/240V systems
- Compatibility: Whirlpool Electric Range WFE505W0HS0
Common Problems & Symptoms for Whirlpool Electric Range - Oven/Stove Touchpad Control Board - White WFE505W0HS0
- Control board failure due to electrical surge or internal component wear.
- Touchpad membrane damage causing buttons to stop responding.
- Display failure or loss of temperature feedback due to circuit malfunction.
- Inconsistent temperature output caused by faulty board signal processing.
- Prolonged use or overheating degrading board responsiveness.
Installation Guide for Whirlpool Electric Range - Oven/Stove Touchpad Control Board - White WFE505W0HS0
Signs & Symptoms
- Touchpad buttons unresponsive or intermittently working.
- Display is blank, flickering, or fails to show proper settings.
- Inconsistent or inaccurate oven temperature control.
- Delay between button presses and oven response.
- Oven fails to start or stops mid-cycle due to control failure.
Installation Guide
- Turn off power to the range and unplug it from the outlet.
- Remove the control panel by unscrewing and detaching it from the appliance front.
- Disconnect the old control board by unplugging its wiring connectors carefully.
- Connect the new W11546066 board, ensuring proper alignment and secure connections.
- Reinstall the control panel, tighten screws, and restore power to the appliance.
- Test all oven and stovetop functions to confirm full operational control and display accuracy.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
The Whirlpool Electric Range - Oven/Stove Touchpad Control Board - White WFE505W0HS0 is the correct replacement for the following model numbers
The Whirlpool Electric Range Touchpad Control Board – W11546066 is an authentic OEM replacement designed to restore your range’s full functionality and performance. Compatible with Whirlpool model WFE505W0HS0, it enables accurate temperature adjustments and reliable operation of oven and stovetop controls. If your existing touchpad is unresponsive, inconsistent, or has display issues, this replacement returns your appliance to factory-grade performance with dependable precision and durability.
Key Features of Whirlpool Electric Range Touchpad Control Board – W11546066
- Genuine OEM Replacement – Manufactured by Whirlpool for an exact fit and dependable function.
- Accurate Temperature Control – Enables precise heat regulation across all cooking modes.
- Durable Build – High-quality components resist heat and repeated use over time.
- Plug-and-Play Installation – Straightforward replacement requires minimal tools or effort.
- Restores Cooking Performance – Fixes temperature fluctuations, unresponsive controls, or display failures.
- Model-Specific Fit – Designed specifically for Whirlpool Electric Range model WFE505W0HS0.
