Product Description

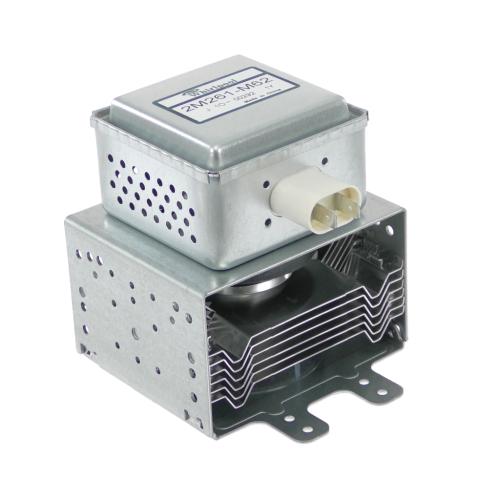

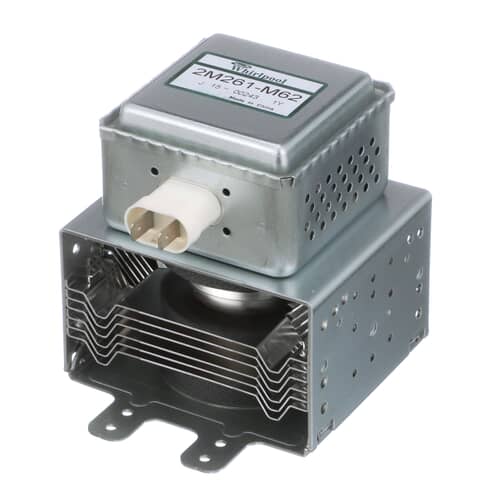

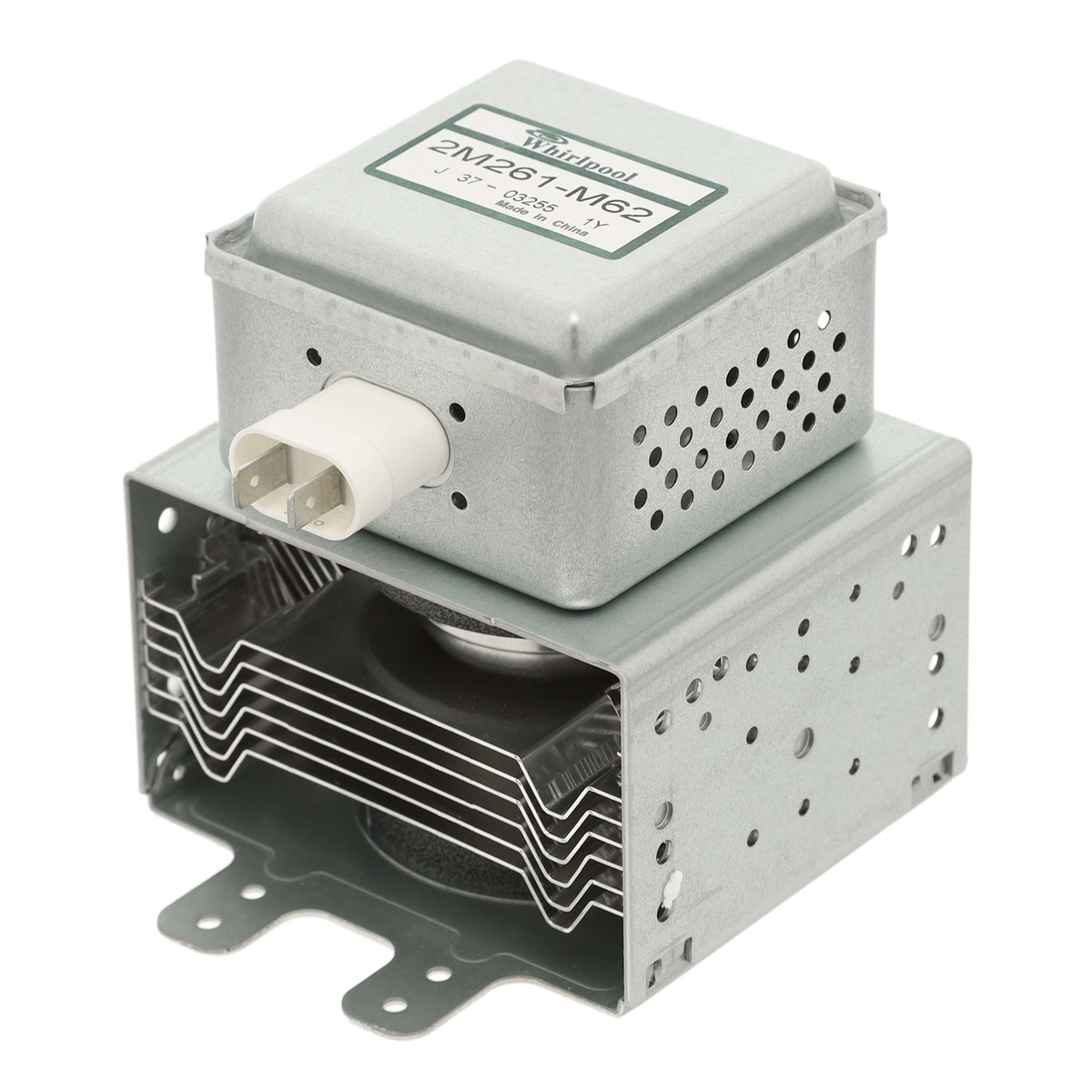

The Whirlpool Part# W11346197 Magnetron (OEM) is the core microwave energy source within the appliances high-voltage system. It converts electrical energy into high-frequency microwave radiation that penetrates food and produces heat. A properly functioning magnetron is essential for consistent cooking performance and even heating throughout the cooking cavity. Replacement of a failed magnetron restores cooking capability and corrects no heat conditions.
Why Buy From Us?
We supply genuine OEM replacement parts to ensure exact fit and dependable durability. Orders are processed quickly for fast shipping, and we provide easy returns along with knowledgeable support to assist with compatibility confirmation and installation guidance.
Key Features of Whirlpool Part# W11346197 Magnetron (OEM)
- Genuine OEM Replacement Designed to meet original electrical and performance specifications.
- High-Energy Output Supports reliable microwave generation for consistent heating.
- Stable Electrical Construction Built with quality internal components for durability.
- Integrated Mounting Design Fits existing magnetron cavity without modification.
- Thermal Tolerance Engineering Designed to withstand high-voltage and heat conditions.
- Direct Replacement Component Installs securely in place of original unit.
Technical Specifications of Whirlpool Part# W11346197 Magnetron (OEM)
- Part Number W11346197.
- Dimensions Approx. 6" L × 8" W × 5" H.
- Material Vacuum-sealed magnetron tube with ceramic and metal housing.
- Color Metallic or silver finish.
- Weight Approximately 3.5 lbs.
- Application Microwave energy generator for microwave oven systems.
Common Problems & Symptoms for Whirlpool Part# W11346197 Magnetron (OEM)
- Microwave fails to heat Magnetron failure results in no heat condition.
- Uneven heating performance Partial magnetron degradation can cause hot and cold spots.
- Audible humming or buzzing Faulty magnetron may produce irregular sound during operation.
- Burnt odor from high-voltage assembly Magnetron malfunction can cause overheating.
Installation Guide for Whirlpool Part# W11346197 Magnetron (OEM)
- Disconnect the microwave from the power supply and discharge high-voltage components safely with a well-insulated tool.
- Remove outer panels to access the high-voltage assembly.
- Label and disconnect wiring from the existing magnetron.
- Remove mounting hardware and extract the old magnetron carefully.
- Install the replacement magnetron reconnect labeled wiring and secure with mounting hardware.
- Reassemble outer panels restore power and test microwave heating performance.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
No Models Found
The Whirlpool Part# W11346197 Magnetron (OEM) is the correct replacement for the following model numbers
The Whirlpool Part# W11346197 Magnetron (OEM) is the core microwave energy source within the appliances high-voltage system. It converts electrical energy into high-frequency microwave radiation that penetrates food and produces heat. A properly functioning magnetron is essential for consistent cooking performance and even heating throughout the cooking cavity. Replacement of a failed magnetron restores cooking capability and corrects no heat conditions.
