The part - W10686516 is discontinued, Below is the replacement part for this:
Have a question?
Product Description

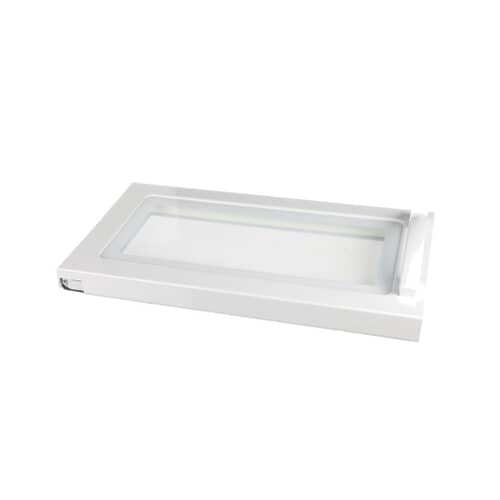

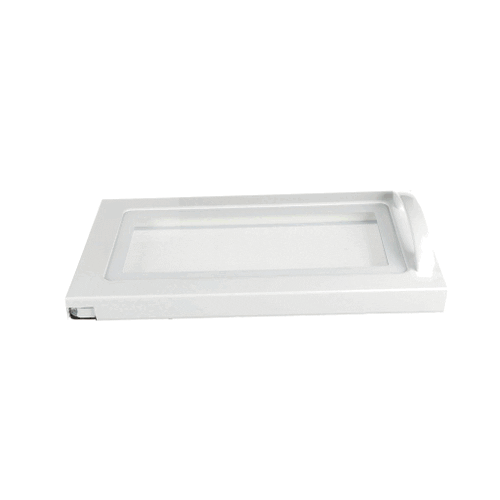

The Whirlpool Part# W11685613 Door Assembly - Genuine OEM functions as the primary structural door component, enclosing internal insulation and control elements while maintaining a secure seal during operation. A properly fitted door assembly ensures stable latch performance, prevents leaks, and supports safe wash cycle operation.
Why Buy From Us?
We supply genuine OEM replacement parts to ensure exact fit and dependable durability. Orders are processed quickly for fast shipping, and we provide easy returns along with knowledgeable support to assist with compatibility confirmation and installation guidance.
Key Features of Whirlpool Part# W11685613 Door Assembly - Genuine OEM
- Genuine OEM Replacement Designed for exact fit and dependable compatibility.
- Reinforced Structural Panel Provides stable support for internal components.
- Corrosion-Resistant Finish Built to withstand moisture and detergent exposure.
- Precision Alignment Design Ensures proper latch and hinge engagement.
- Secure Seal Support Helps maintain watertight closure during operation.
- Direct Replacement Configuration Installs without structural modification.
Technical Specifications of Whirlpool Part# W11685613 Door Assembly - Genuine OEM
- Part Number W11685613.
- Dimensions Approx. 23.5" W × 27" H × 2.5" D.
- Material Powder-coated steel panel.
- Color Stainless steel / Black varies by model configuration.
- Weight Approximately 18 lbs.
- Application Exterior door assembly for dishwasher systems.
Common Problems & Symptoms for Whirlpool Part# W11685613 Door Assembly - Genuine OEM
- Dent or physical damage Impact may compromise structural stability.
- Door not sealing properly Warped panel can affect gasket contact.
- Latch misalignment Damaged frame may prevent secure closure.
- Excessive vibration or noise Loose or weakened door structure may cause movement.
Installation Guide for Whirlpool Part# W11685613 Door Assembly - Genuine OEM
- Disconnect the dishwasher from the power supply.
- Open the door and remove screws securing the inner door panel.
- Support the outer door panel while separating it from the inner assembly.
- Transfer necessary components handle insulation or hardware if required.
- Position the new door assembly and secure with original screws.
- Restore power and test the door for proper alignment and operation.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
No Models Found
The Whirlpool Door Assembly (White) W10686516 is the correct replacement for the following model numbers
Keep your appliance running at peak performance with the Door Assembly (White) W10686516. Designed to restore your appliance’s original functionality, this high-quality replacement part tackles everyday wear and tear with ease - keeping everything running like new.
Manufactured to strict OEM standards, the Door Assembly (White) ensures reliable performance, a precise fit, and long-lasting durability. Whether used in Whirlpool appliances or other compatible models, it’s an ideal solution for quick repairs and routine maintenance - helping extend the life of your appliance and prevent costly replacements.
