Product Description

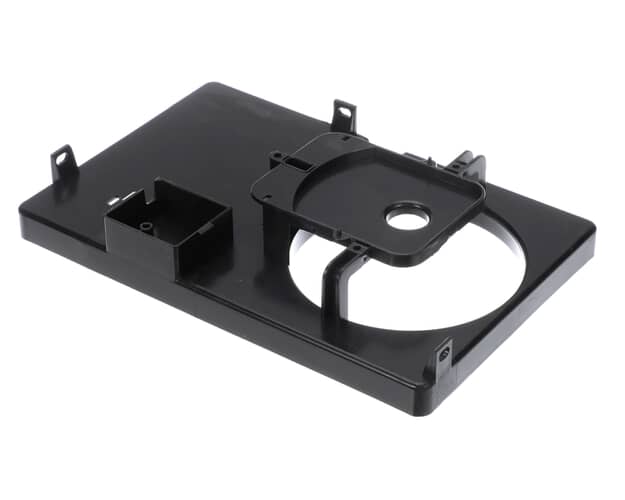

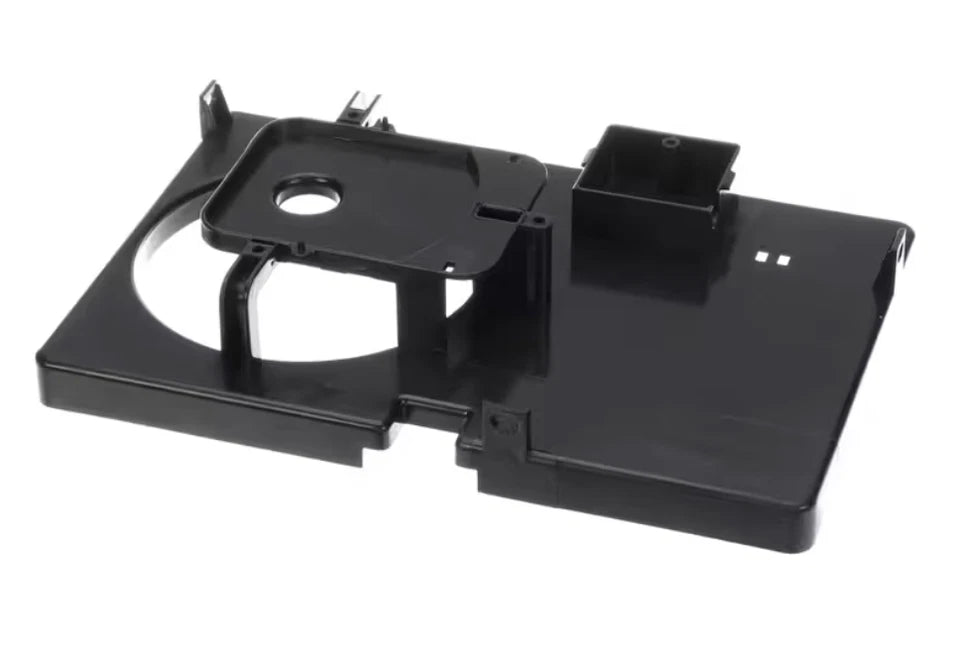

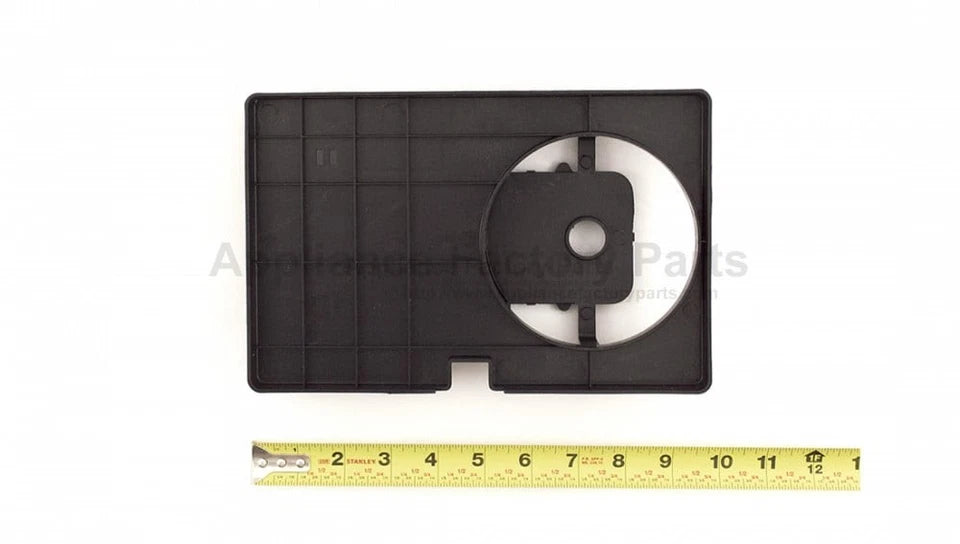

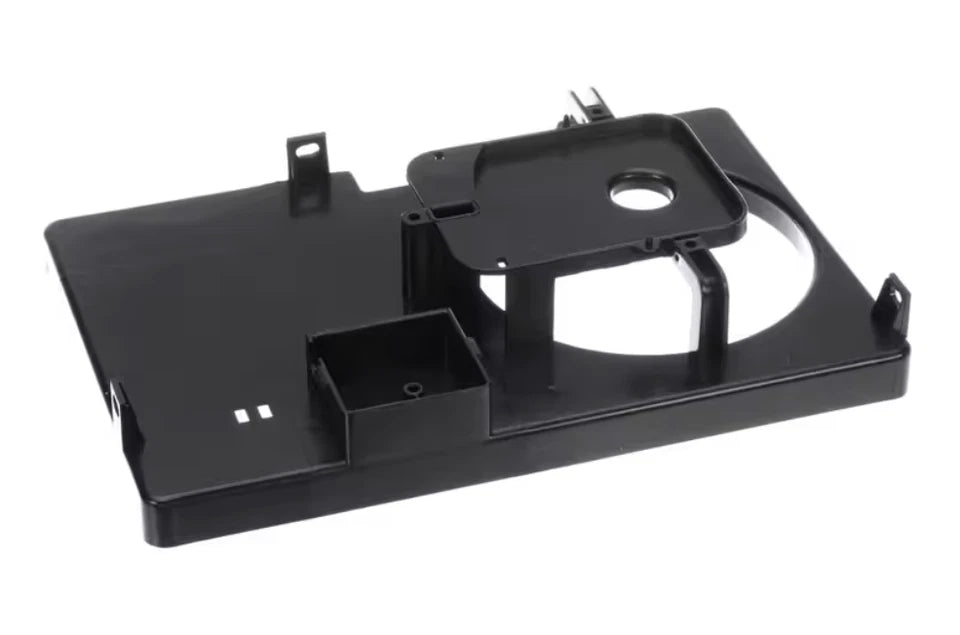

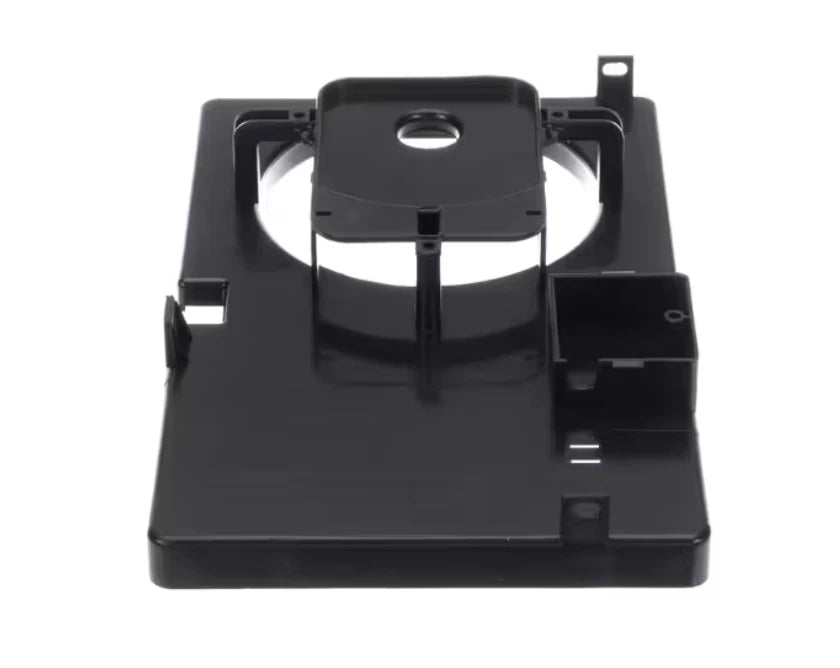

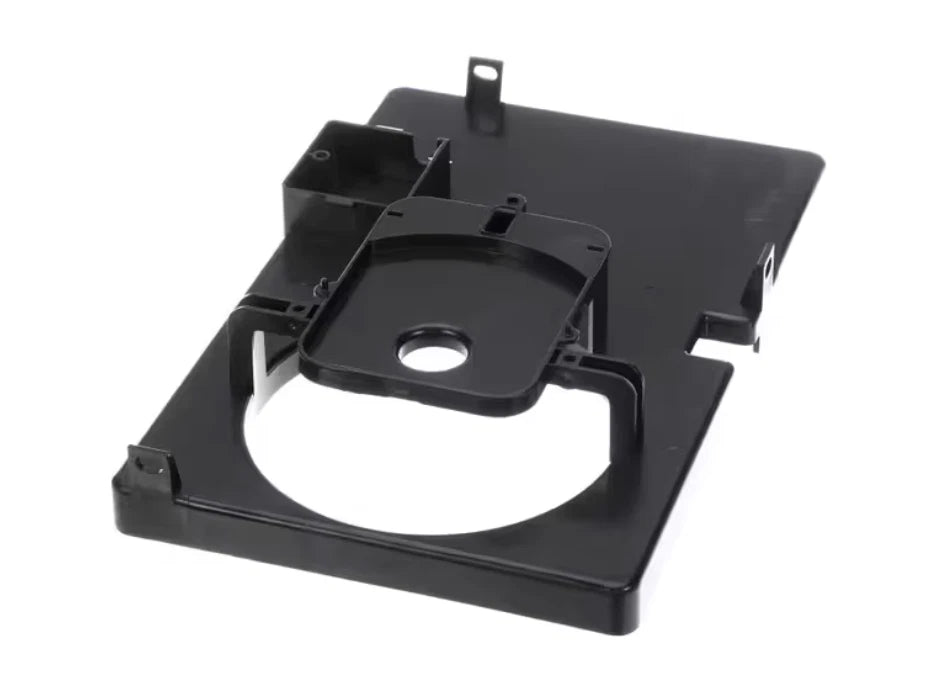

The Magic Chef Fan Motor Bracket – 312121800034 is a replacement component for select Magic Chef refrigeration and wine-cooler models. It addresses issues such as fan motor wobble, misalignment, or bracket failures that lead to noisy or inefficient fan operation. Ideal for users focused on restoring reliable cooling and quiet performance.
We provide trusted parts for Magic Chef appliances, ensuring compatibility and performance. With fast shipping, easy returns, and expert customer support, you can rely on us for a smooth replacement experience and dependable results.
Key Features of Magic Chef Fan Motor Bracket for Refrigeration – 312121800034
- Precision-engineered fit: designed to match the original fan motor mounting points in compatible Magic Chef models.
- Stable motor support: keeps the fan motor securely in place, reducing vibration and noise during operation.
- Durable metal construction: built to withstand the cold, continuous operation and environment inside refrigeration units.
- Straightforward installation: replaces the original bracket with minimal effort, maintaining factory mount location.
- Maintains airflow consistency: by keeping the fan motor aligned, ensures proper airflow across the evaporator and stable cooling.
- Extends system life: by avoiding undue motor movement or stress, supports longer lifespan of fan motor and associated components.
Technical Specifications
- Part Number: 312121800034
- Material: Metal bracket assembly
- Application: Fan motor support bracket for select Magic Chef refrigeration/wine-cooler models
- Compatible Models: Includes HMWC50ST, HMBC58ST (and similar models using this mount)
- Mount Style: Direct replacement bracket; attaches to existing frame and motor mounting holes
- Weight: Approximately light (exact weight varies by model and mounting hardware)
Common Causes
- Bracket cracked or bent, allowing motor to shift and contact housing or components.
- Motor mounting screws loosen, causing misalignment of fan blade and breaker of airflow.
- Vibration from fan motor over time loosens bracket or weakens mounting points.
- Using incorrect bracket or mounting kit resulting in motor misplacement and noisy operation.
Symptoms & Installation Guide
Signs & Symptoms
- Fan motor making excessive noise or vibration during cooling cycles.
- Visible wobble of fan motor or fan blade contacting housing.
- Refrigeration unit failing to maintain temperature due to inefficient airflow.
- Bracket visible deformation or mounting tab breakage inside cabinet.
Installation Guide
- Disconnect power to the refrigeration unit before servicing.
- Remove access panel to locate the fan motor and mounting bracket.
- Remove the old bracket by unscrewing mounting bolts and lifting the motor if needed.
- Inspect motor shaft and mounting area for damage or debris; clean as necessary.
- Install the new 312121800034 bracket, aligning the mount holes and securing the fan motor in correct orientation.
- Reattach any removed components and access panels. Restore power and observe operation: check for smooth fan rotation, minimal noise, and stable motor position.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|

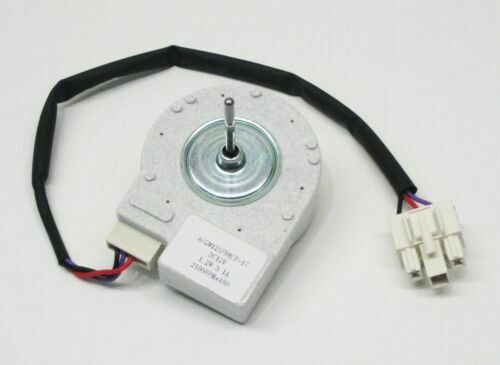

The Magic Chef Refrigerator Fan Motor – 31212180003 is the correct replacement for the following model numbers
