The part - EAD63647001 is discontinued, Below is the replacement part for this:
Have a question?
Product Description

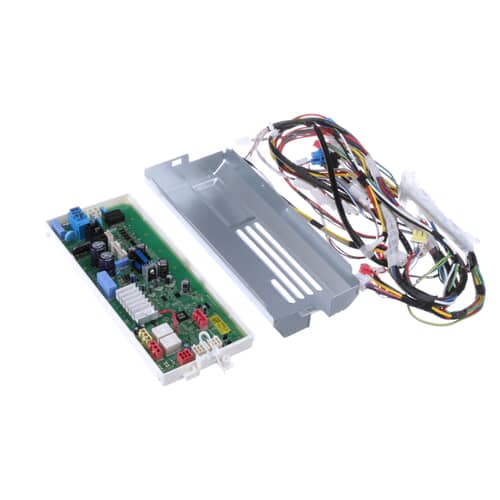

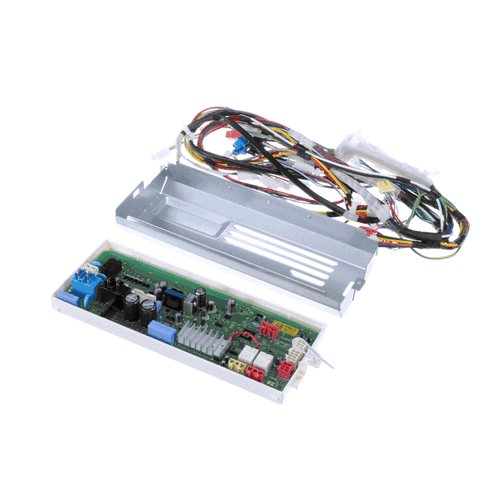

The LG Dishwasher Control Board Assembly (Main Harness/PCB) - AGM76889607 is the primary electronic module responsible for orchestrating every aspect of your dishwasher's operation. It interprets user input from the control panel and directs various components like water valves, pumps, and heating elements to execute wash, rinse, and drain cycles. This assembly ensures your dishwasher performs its cleaning tasks accurately and efficiently. This critical component acts as the central nervous system for your appliance. When it malfunctions, you may experience a range of issues from a complete lack of power to specific cycles not completing or the dishwasher behaving erratically. Replacing a faulty control board with the correct part, such as the Dishwasher Control Board Assembly (Main Harness/PCB) - AGM76889607, is essential for restoring your dishwasher's performance and preventing further damage to other components.
Why Buy From Us
We provide authentic OEM components to ensure precise fit and long-term functionality. With fast shipping, easy returns, and expert assistance, you can confidently restore your washer’s performance. Count on us for dependable parts and trustworthy service throughout your repair.
- Comprehensive Cycle Management: Governs all wash, rinse, and drain sequences precisely.
- Integrated Main Harness: Connects all necessary electrical components for seamless communication.
- Restores Full Functionality: Replaces a defective board to bring your dishwasher back to optimal working order.
- Reliable Electronic Performance: Ensures accurate timing and execution of dishwasher programs.
- Durable Construction: Built to withstand the demanding environment within a dishwasher.
- Direct Replacement Part: Designed to perfectly fit and function with compatible dishwasher models.
Specifications
- Part Number: AGM76889607
- Component Type: Main electronic control board with integrated wiring harness.
- Functionality: Manages all dishwasher operations including cycles, sensors, and user interface.
- Connection: Features all necessary connectors for pumps, valves, heaters, and user controls.
- Compatibility: Designed for specific dishwasher models.
- Voltage: Standard household electrical voltage for dishwashers.
Common Problems
- Erratic Cycle Behavior: Dishwasher not completing cycles or running randomly.
- No Power to Dishwasher: Control board failure preventing any operation.
- Specific Functions Not Working: Inability to select or run certain wash programs.
- Error Codes Displayed: Diagnostic codes indicating a control board malfunction.
- Failed User Interface: Control panel buttons or display not responding.
Installation Guide
- Ensure the dishwasher is unplugged from the power outlet and water supply is turned off.
- Open the dishwasher door and remove the lower kick plate or access panel at the bottom.
- Locate the main control panel housing, often behind the door or under the console.
- Disconnect wiring harnesses from the old control board, taking note of their positions.
- Carefully unmount the existing control board assembly from its housing.
- Install the new Control Board Assembly (Main Harness/PCB) and reconnect all wiring harnesses securely.
- Reassemble the access panels and reconnect the water supply and power.
Returns
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Title | Exploded View |
|---|
No Models Found
The LG Wire Harness EAD63647001 is the correct replacement for the following model numbers
Keep your appliance running at peak performance with the Wire Harness EAD63647001. Designed to restore your appliance’s original functionality, this high-quality replacement part tackles everyday wear and tear with ease - keeping everything running like new.
Manufactured to strict OEM standards, the Wire Harness ensures reliable performance, a precise fit, and long-lasting durability. Whether used in LG appliances or other compatible models, it’s an ideal solution for quick repairs and routine maintenance - helping extend the life of your appliance and prevent costly replacements.
