Product Description

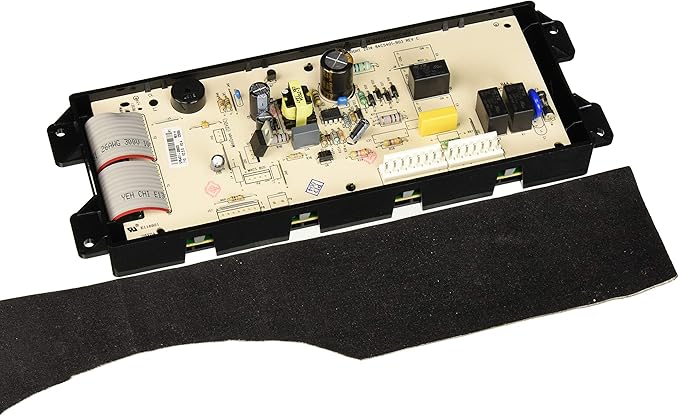

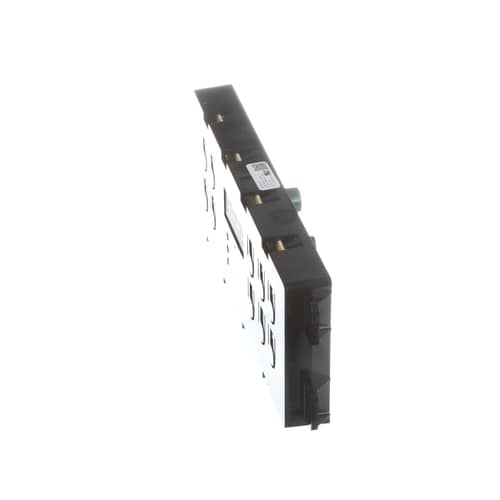

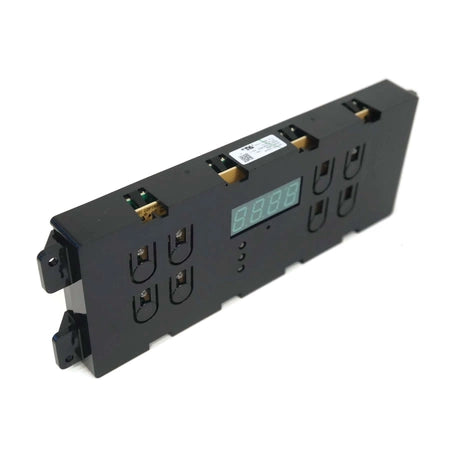

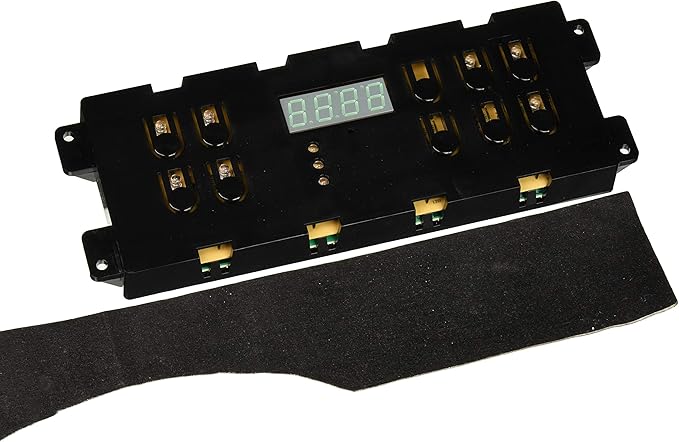

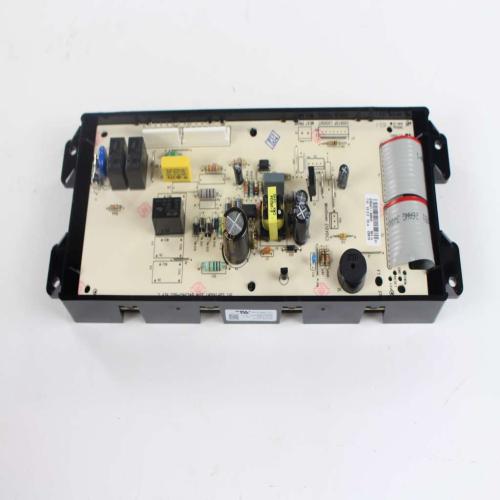

The Frigidaire Range User Interface Control Board – 5304509983 is a factory-certified OEM component designed to restore precise and dependable operation of your range’s user interface and baking system. If your range’s display is dark, the controls don’t respond, or your cooking cycles fail to start, this board brings back full functionality and accuracy with the same fit as the original equipment.
(5304509983, frigidaire 5304509983, range control board user interface)
Key Features of Frigidaire Range User Interface Control Board – 5304509983
- Genuine OEM Replacement: Engineered by Frigidaire/Electrolux for perfect fit and reliable performance.
- Comprehensive Interface Control: Handles clock/timer display, user touchpad or buttons, and baking/broiling cycle management.
- Widely Compatible: Works with select Frigidaire, Electrolux, White Westinghouse and Tappan range models.
- Durable Construction: Built with high-quality electronics and connectors to withstand range heat and daily use.
- Restores Full Functionality: Helps resolve issues like unresponsive panels, “F” error codes, or bake element failures triggered by interface fault.
- Straightforward Replacement: Designed for plug-and‐play installation with minimal steps and no need for special tools.
Technical Specifications
- Part Number: 5304509983
- Brand: Frigidaire / Electrolux
- Type: Range user interface & control board
- Material: Electronic circuit board with display module and membrane/keypad overlay
- Weight: Approx. 2.5 lbs
- Package Size: Approx. 11.34″ × 7.09″ × 4.29″ (varies)
- Replaces: Previous part numbers like 316418201, 316557101 (varies per model)
Common Causes
- Power surges or voltage spikes: Damaging the control board circuitry.
- Moisture or steam infiltration: Behind the user control panel.
- Worn or failed touchpad or membrane: Causing erratic behavior.
- Continuous heat exposure: Weakening components.
- Incorrect wiring or failed connectors: Leading to interface failure.
Symptoms & Installation Guide
Signs & Symptoms
- Display screen blank or faint: When range is powered on.
- Buttons or touch controls: Not responding or behaving erratically.
- Oven won’t start bake or broil functions: Despite correct settings.
- Error codes shown: (such as “F 1”, “F 3”, “F 5”) or no display at all.
- Clock or timer not advancing: And cooking cycles not initiating.
Installation Guide
- Turn Off Power: Unplug the range or switch off the circuit breaker to ensure safety.
- Access Control Board: Remove the rear or front control panel to expose the user interface board.
- Document Wiring: Take a photo or label each connector before disconnection to ensure correct re-installation.
- Remove Old Board: Unscrew mounting brackets and carefully unplug all ribbon and wire connectors.
- Install New Board: Place the new 5304509983 board in position and reconnect all wiring and ribbon cables.
- Secure Panel: Replace control panel cover and ensure all screws are tightened.
- Test Operation: Restore power, test display and buttons, and start a short bake or broil cycle to verify full function.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
The Frigidaire Range User Interface Control Board – 5304509983 is the correct replacement for the following model numbers
The Frigidaire Range User Interface Control Board – 5304509983 is a factory-certified OEM component designed to restore precise and dependable operation of your range’s user interface and baking system. If your range’s display is dark, the controls don’t respond, or your cooking cycles fail to start, this board brings back full functionality and accuracy with the same fit as the original equipment.
(5304509983, frigidaire 5304509983, range control board user interface)
Key Features of Frigidaire Range User Interface Control Board – 5304509983
- Genuine OEM Replacement: Engineered by Frigidaire/Electrolux for perfect fit and reliable performance.
- Comprehensive Interface Control: Handles clock/timer display, user touchpad or buttons, and baking/broiling cycle management.
- Widely Compatible: Works with select Frigidaire, Electrolux, White Westinghouse and Tappan range models.
- Durable Construction: Built with high-quality electronics and connectors to withstand range heat and daily use.
- Restores Full Functionality: Helps resolve issues like unresponsive panels, “F” error codes, or bake element failures triggered by interface fault.
- Straightforward Replacement: Designed for plug-and‐play installation with minimal steps and no need for special tools.
