Whirlpool Pump Motor W11665769
$130.72
Price Match Guarantee
i
How to Submit a Price Match Request
If you find a lower eligible price on an identical OEM part from a qualifying retailer, just navigate to the product page on our website. Right next to the price, you’ll see a “Price Match” button. Click that button to open our Price Match Request Form. Fill out the form and include a link to the competitor’s product, along with the other required details. Our team will review the request based on our Price Match Policy and determine whether it qualifies. If it does, we’ll approve the match; if not, we’ll explain why it didn’t meet the criteria. You’ll hear from us via email once the review is complete. Read More about our Price Match Policy
Zoom
Add To Profile
Have a question?
Product Description

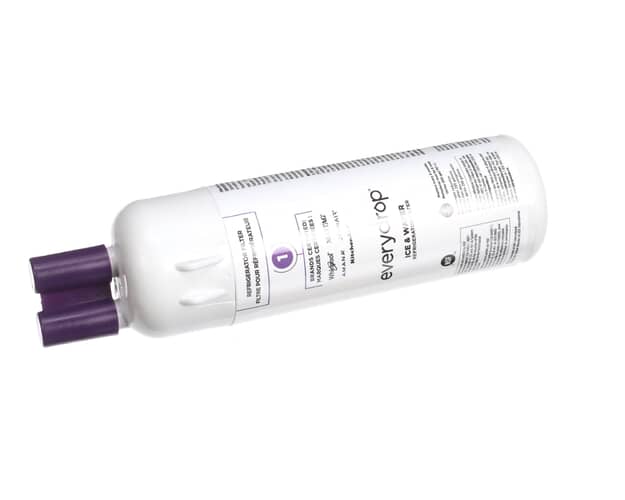

Enjoy fresh, great-tasting water every day with the authentic Whirlpool Refrigerator Ice and Water Filter – EDR1RXD1. Designed for select Whirlpool side-by-side and French-door refrigerator models, this advanced carbon block filter effectively reduces over 50 impurities, including lead, chlorine, pesticides, and select pharmaceuticals. The filter installs easily in minutes — no tools or water shutoff required — and delivers up to 6 months or 200 gallons of clean, refreshing water while ensuring optimal refrigerator performance.
Advanced Filtration
Traps microscopic particles and impurities for cleaner water and ice.
Lead Reduction
Removes heavy metals and harmful particles for safer drinking water.
Chlorine Reduction
Improves taste and removes unpleasant odors.
BPA Reduction
Removes harmful chemicals for cleaner, healthier water.
Whirlpool EDR1RXD1 Filter – Certified to Remove 50+ Contaminants
Cleaner Water, Every Glass.
The Whirlpool Refrigerator Ice and Water Filter – EDR1RXD1 uses premium carbon filtration to trap microscopic particles and impurities that affect water quality, taste, and safety — giving you crisp, clear water and ice every time.
Chlorine & Chloramines: Enhances taste and eliminates unpleasant odors from tap water.
Lead, Mercury & Asbestos: Filters out heavy metals and harmful materials for safer consumption.
Pharmaceutical Residues: Helps reduce traces of common medications found in municipal water.
Pesticides & Herbicides: Minimizes chemical contaminants for purer, cleaner water.
Technical Specifications of Whirlpool Refrigerator Ice & Water Filter - EDR1RXD1
| Part Number | EDR1RXD1 |
|---|---|
| Product Type | Refrigerator Ice and Water Filter |
| Compatible Brands | Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air |
| Filter Media | Advanced Activated Coconut Carbon Block |
| Filter Life | Up to 6 Months or 200 Gallons |
| Rated Capacity | 200 Gallons |
| Flow Rate | 0.5 GPM |
| Operating Pressure | 30–120 psi |
| Operating Temperature | 33°F – 100°F (0.6°C – 37.8°C) |
| NSF/ANSI 42 | Certified for Chlorine, Taste, and Odor Reduction |
| NSF/ANSI 53 | Certified for Lead, Mercury, and Cyst Reduction |
| NSF/ANSI 401 | Certified for Emerging Contaminant Reduction |
| Chlorine Taste & Odor | 99.9% |
| Lead | 99.3% |
| Mercury | 96.5% |
| Cysts | 99.99% |
| Asbestos | 99.9% |
| Benzene | 99.0% |
| Pharmaceuticals | Reduces traces of Ibuprofen, Naproxen, and Atenolol |
| Pesticides & Herbicides | Removes 97% of common agricultural chemicals |
| VOC (Volatile Organic Compounds) | 99.7% |
| Material | Food-Grade BPA-Free Plastic |
| Color | White |
| Installation Type | Push & Twist Design (Tool-Free) |
| Overall Height | 9.75 in |
| Overall Width | 1.625 in |
| Overall Depth | 1.625 in |
| Approximate Weight | 1.2 lbs |
| Manufacturer | Whirlpool Corporation |
| UPC | 883049362507 |
| Country of Origin | USA |
Common Problems & Symptoms for Whirlpool Refrigerator Ice & Water Filter - EDR1RXD1
- Worn-Out Filter: The Whirlpool EDR1RXD1 filter may have exceeded its 6-month or 200-gallon usage limit, which reduces its ability to remove contaminants effectively.
- Improper Installation: If the filter isn’t clicked or rotated fully into position, water flow may slow down or small leaks can develop at the connection point.
- Use of Non-OEM Filters: Generic or off-brand filters may not fit properly, leading to reduced filtration performance or possible damage to the refrigerator’s water system.
- Heavy Sediment or Mineral Build-Up: Hard water or high levels of sediment can clog the carbon block prematurely, limiting the filter’s efficiency.
- Inconsistent Water Pressure: Low or fluctuating household water pressure can restrict proper flow through the filter and impact overall performance.
- Poor Storage Conditions: Filters stored in direct sunlight, humidity, or extreme temperatures before installation may lose their effectiveness over time.
Tip: Always install a certified Whirlpool EDR1RXD1 filter and replace it regularly to maintain consistent water quality and flow.
Installation Guide for Whirlpool Refrigerator Ice & Water Filter - EDR1RXD1
⚠️ Signs That Your Filter Needs Replacement
- Reduced Water Flow: Water from the dispenser starts flowing slower, indicating the filter is clogged or near the end of its service life.
- Unpleasant Taste or Odor: If your water or ice begins to taste metallic or smell like chlorine, it’s a sign the filter is no longer effectively removing impurities.
- Cloudy or Murky Water: Dull or cloudy appearance in water and ice cubes often means the carbon filter media is saturated.
- Filter Indicator Alert: Most Whirlpool refrigerators display a yellow or red light when it’s time to replace the EDR1RXD1 filter.
- Unusual Noises: Gurgling or sputtering sounds from the water dispenser can occur when the filter is partially blocked.
- Drips or Leaks: Worn-out or incorrectly seated filters may cause small leaks around the filter housing area.
Tip: Replace your Whirlpool EDR1RXD1 filter every 6 months or after filtering approximately 200 gallons of water — whichever comes first — to keep water tasting crisp and clean.
🛠️ Installation Guide
- Locate the Filter: Find the filter compartment inside your refrigerator, typically in the upper right-hand corner or along the bottom grille.
- Remove the Old Filter: Turn the old filter counterclockwise to unlock it, then gently pull it straight out.
- Prepare the New Filter: Unwrap your new Whirlpool EDR1RXD1 filter and remove the protective cap from the O-rings.
- Insert and Lock: Align the filter’s notches with the slot, push it firmly into place, and rotate clockwise until it locks securely.
- Flush the System: Run approximately 4 gallons (or about 3–5 minutes) of water through the dispenser to clear air and carbon residue.
- Reset the Indicator: Press and hold the “Filter Reset” or “Water Filter” button on your refrigerator’s control panel until the light turns green or goes off.
Tip: Always verify the filter model and installation location based on your Whirlpool refrigerator’s user manual before replacing the filter.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
No Models Found
The Whirlpool Refrigerator Ice & Water Filter - EDR1RXD1 is the correct replacement for the following model numbers
Enjoy fresh, great-tasting water every day with the authentic Whirlpool Refrigerator Ice and Water Filter – EDR1RXD1. Designed for select Whirlpool side-by-side and French-door refrigerator models, this advanced carbon block filter effectively reduces over 50 impurities, including lead, chlorine, pesticides, and select pharmaceuticals. The filter installs easily in minutes — no tools or water shutoff required — and delivers up to 6 months or 200 gallons of clean, refreshing water while ensuring optimal refrigerator performance.
Advanced Filtration
Traps microscopic particles and impurities for cleaner water and ice.
Lead Reduction
Removes heavy metals and harmful particles for safer drinking water.
Chlorine Reduction
Improves taste and removes unpleasant odors.
BPA Reduction
Removes harmful chemicals for cleaner, healthier water.
Whirlpool EDR1RXD1 Filter – Certified to Remove 50+ Contaminants
Cleaner Water, Every Glass.
The Whirlpool Refrigerator Ice and Water Filter – EDR1RXD1 uses premium carbon filtration to trap microscopic particles and impurities that affect water quality, taste, and safety — giving you crisp, clear water and ice every time.
Chlorine & Chloramines: Enhances taste and eliminates unpleasant odors from tap water.
Lead, Mercury & Asbestos: Filters out heavy metals and harmful materials for safer consumption.
Pharmaceutical Residues: Helps reduce traces of common medications found in municipal water.
Pesticides & Herbicides: Minimizes chemical contaminants for purer, cleaner water.
