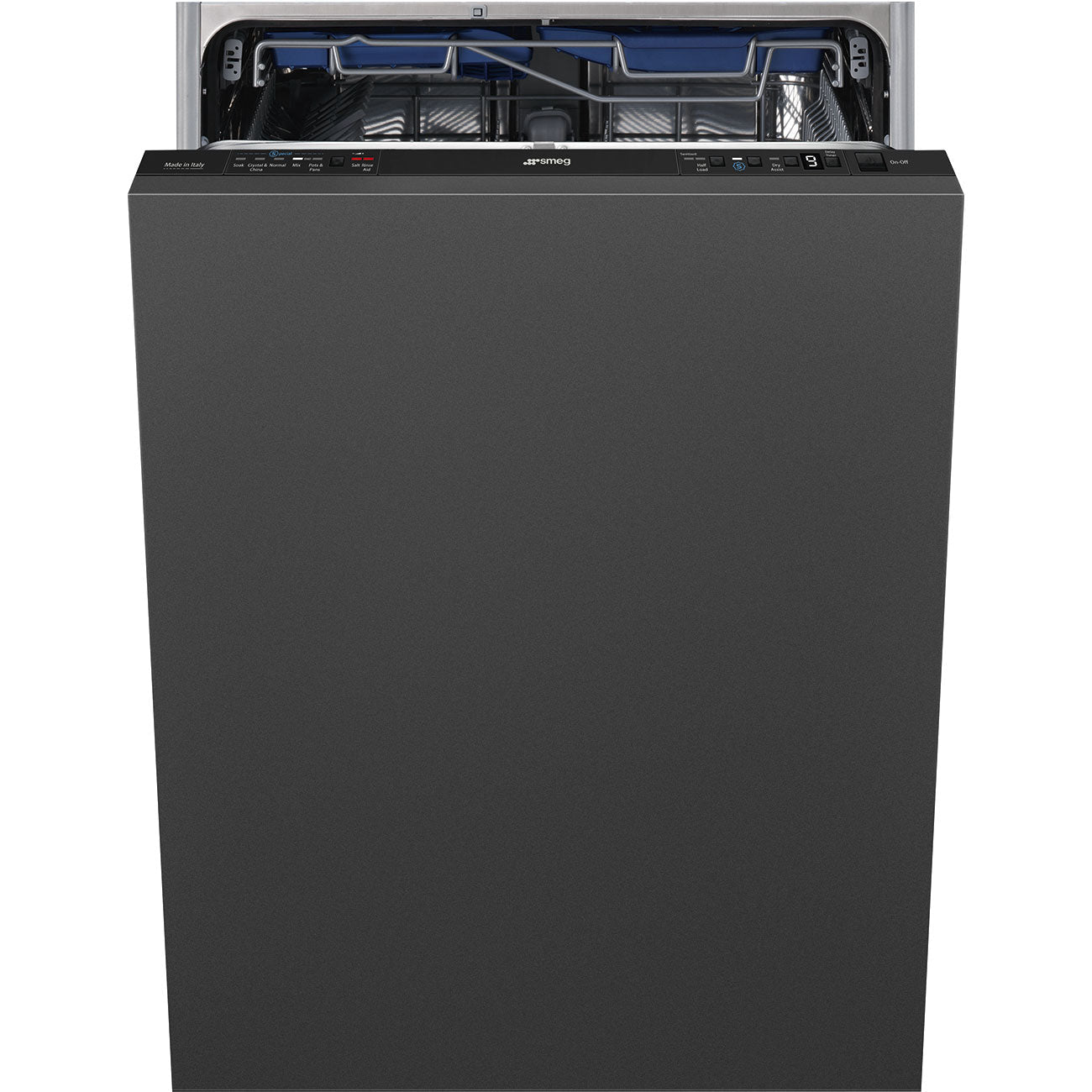

Smeg STU8623 24 Inch Built-In Panel Ready Fully Integrated Dishwasher with 13 Place Settings

100%
Original

Fast
Shipping

Brand
Warranty

Easy
Returns

Add To Profile

Smeg STU8623 24 Inch Built-In Panel Ready Fully Integrated Dishwasher with 13 Place Settings Read More

Name: Smeg STU8623 24 Inch Built-In Panel Ready Fully Integrated Dishwasher with 13 Place Settings
Brand: Smeg
SKU: STU8623
Availability: InStock

Model Number :STU8623

Appliance Type : Dishwasher

The Smeg STU8623 24 Inch Built-In Panel Ready Fully Integrated Dishwasher, a top-of-the-line appliance designed to make your dishwashing experience a b. . . Read More

Type

Product Family : Dishwashers
Commercial height : 86 cm
Number of place settings : 13
Installation : Fully-integrated built-in
Commercial width : 60 cm
EAN code : 8017709303648

Aesthetics

Front panel colour : Black
LED/display colour : White
Buttons colour : Black

Programs / Functions

N. of programmes : 10
Soak : Yes
Express 27' : Yes
Mix : Yes
Sterilise : Yes
Delicate : Yes
Normal : Yes
Crystal & China : Yes
Eco express : Yes
Express 60' : Yes
Pots & Pans : Yes
Washing temperatures : 38, 45, 50, 55, 65, 70, 75 °F

Options

Dry Assist option : Yes
Delay timer option : Up to 9 hours
1/2 load FlexiZone option : Yes
Special programs option : Yes

Baskets

N° baskets : 3, FlexiDuo
Basket colour : Grey
Upper Basket : With 1 foldable rack
Height adjustment of the upper basket : On three levels (5 cm)
Sliding Guides Extra Glide : Yes
Lower Basket : With 2 foldable racks
Largest loadable dish in upper basket : 18,0 inches
Largest loadable dish in lower basket : 35,0 inches
Cutlery basket : Yes
Colour Inner Components : Blue

Technical Features

Display : Delayed start, Programme time indicator, Time to end indication
Door opening system : Yes
Display type : LED display (3 digit)
Salt light indicator : Light
Rinse aid indicator : Light
End of cycle indicator : Led on display, with acoustic signal
Washing system : Orbital
Drying system : Natural condenser drying, with Dry Assist automatic door opening system at the end of the cycle
Motor : Single phase
Third spray arm : Single
Water softener : With electronic setting
Flood protection system : Single Acquastop
Max water hardness : 100°fH;58°dH
Tub material : Stainless steel
Filter : Stainless steel
Concealed heating element : Yes
Min. and max. frontal panel weight : 2 - 9 lbs
Hinges : Self balancing with variable hinges
Min. and max plinth height : 100 - 228 mm
Adjustable feet : 7cm, from 860 to 930 mm

Performance / Energy Label

Noise level : 48 dB(A) re 1pW
Water consumption per cycle (l/cycle) : 3.2 gal
Annual energy consumption : 255 KWh/year
Energy Star : Yes

Electrical Connection

Connected power : 1800 W
Current : 13 A
Voltage : 115 V
Type of connection : Single-phase
Frequency (Hz) : 60 Hz
Power supply cable length : 140 "

Logistic Information

Net weight (kg) : 110 lbs
Country of origin : IT
Packed width : 25 9/16 "
Packaged depth : 26 3/8 "
Height (mm) packed : 36 13/16 "
Dimensions of the packed product (mm) : 935X650X670
Maximum stackability : 5
Type of packaging : Shrinkwrap
Packaging composition - paper & cardboard (kg) : 4 lbs
Packaging composition - polystyrene (kg) : 3 lbs
Other accessories : Salt funel

Type

Product Family : Dishwashers
Commercial height : 86 cm
Number of place settings : 13
Installation : Fully-integrated built-in
Commercial width : 60 cm
EAN code : 8017709303648

Aesthetics

Front panel colour : Black
LED/display colour : White
Buttons colour : Black

Programs / Functions

N. of programmes : 10
Soak : Yes
Express 27' : Yes
Mix : Yes
Sterilise : Yes
Delicate : Yes
Normal : Yes
Crystal & China : Yes
Eco express : Yes
Express 60' : Yes
Pots & Pans : Yes
Washing temperatures : 38, 45, 50, 55, 65, 70, 75 °F

Options

Dry Assist option : Yes
Delay timer option : Up to 9 hours
1/2 load FlexiZone option : Yes
Special programs option : Yes

Baskets

N° baskets : 3, FlexiDuo
Basket colour : Grey
Upper Basket : With 1 foldable rack
Height adjustment of the upper basket : On three levels (5 cm)
Sliding Guides Extra Glide : Yes
Lower Basket : With 2 foldable racks
Largest loadable dish in upper basket : 18,0 inches
Largest loadable dish in lower basket : 35,0 inches
Cutlery basket : Yes
Colour Inner Components : Blue

Technical Features

Display : Delayed start, Programme time indicator, Time to end indication
Door opening system : Yes
Display type : LED display (3 digit)
Salt light indicator : Light
Rinse aid indicator : Light
End of cycle indicator : Led on display, with acoustic signal
Washing system : Orbital
Drying system : Natural condenser drying, with Dry Assist automatic door opening system at the end of the cycle
Motor : Single phase
Third spray arm : Single
Water softener : With electronic setting
Flood protection system : Single Acquastop
Max water hardness : 100°fH;58°dH
Tub material : Stainless steel
Filter : Stainless steel
Concealed heating element : Yes
Min. and max. frontal panel weight : 2 - 9 lbs
Hinges : Self balancing with variable hinges
Min. and max plinth height : 100 - 228 mm
Adjustable feet : 7cm, from 860 to 930 mm

Performance / Energy Label

Noise level : 48 dB(A) re 1pW
Water consumption per cycle (l/cycle) : 3.2 gal
Annual energy consumption : 255 KWh/year
Energy Star : Yes

Electrical Connection

Connected power : 1800 W
Current : 13 A
Voltage : 115 V
Type of connection : Single-phase
Frequency (Hz) : 60 Hz
Power supply cable length : 140 "

Logistic Information

Net weight (kg) : 110 lbs
Country of origin : IT
Packed width : 25 9/16 "
Packaged depth : 26 3/8 "
Height (mm) packed : 36 13/16 "
Dimensions of the packed product (mm) : 935X650X670
Maximum stackability : 5
Type of packaging : Shrinkwrap
Packaging composition - paper & cardboard (kg) : 4 lbs
Packaging composition - polystyrene (kg) : 3 lbs
Other accessories : Salt funel

Aquastop Water Protection System

Stops leaks as soon as they start.

Stainless Steel Tub

Rust prevention and energy efficient drying.

Half-Load Wash

Save water and electricity usage for smaller loads.

10 Wash Cycles

Soak, Express 27, Mix, Sterilize, Delicates, Normal, Crystal & China, Eco express, Express 60 and Pots & Pans

Other Features

Silence Rating of 48 dBA
Adjustable Feet
Self-Balancing Door
13 Place Settings
7 Temperatures

Certifications

Energy Star Rated
