Product Description

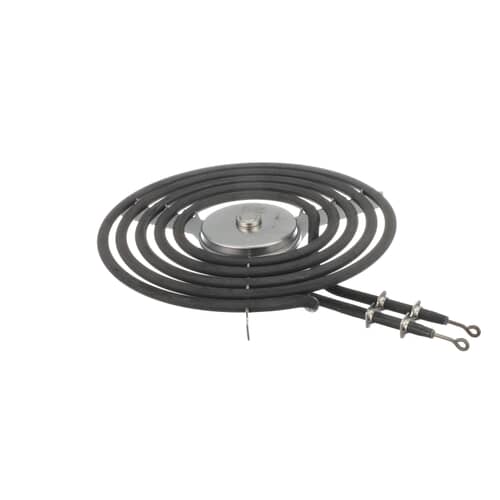

The Whirlpool Surface Element – W11396790 is built to restore your cooktop’s functionality when an existing burner is worn out or malfunctioning. It delivers consistent heat and reliable operation, allowing for precise temperature control and improved efficiency.
Key Features of Whirlpool Surface Element – W11396790
- Exact Fit Design: Matches original mounting size, bracket, and connector style for easy installation.
- Efficient Heating: Offers uniform heat distribution for better cooking results.
- Durable Coil Construction: Designed to handle high temperatures and heavy cookware use.
- Plug-and-Play Installation: Standard plug-in element requires no special tools.
- Dual-Wattage Operation: Optimized for energy-efficient performance and flexibility for different cooking needs.
- Reliable Performance: Restores your cooktop’s full heating capacity and even cooking results.
Technical Specifications
- Part Number: W11396790
- Type: Coil surface burner element
- Size: 8 inches in diameter
- Wattage: Dual-rated at approximately 2400/1800 watts (240V/208V)
- Application: For Whirlpool, Maytag, Amana, Jenn-Air, and KitchenAid electric ranges and cooktops
- Mount Style: Plug-in coil with support bracket
- Compatibility: Replaces older part numbers such as W11199518, W11255552, and W11364019
Common Causes
- Element no longer heats due to internal break or electrical failure.
- Coil becomes warped, cracked, or damaged from heavy cookware or overheating.
- Loose or corroded connector terminals cause intermittent heating.
- Incorrect element installed previously, leading to poor performance or fit issues.
Symptoms & Installation Guide
Signs & Symptoms
- Burner fails to heat or only gets partially hot.
- Cooking takes longer than normal or is uneven.
- Visible damage, cracks, or discoloration on the coil.
- Sparking or buzzing noise when burner is turned on.
Installation Guide
- Unplug the appliance or turn off power at the circuit breaker.
- Remove cookware and lift the cooktop surface to access the burner socket.
- Pull the old element straight out from its socket; inspect terminals for corrosion or wear.
- Align the new W11396790 element with the socket and insert until fully seated.
- Ensure the coil rests evenly on its support bracket for stability.
- Restore power and test by turning on the burner to confirm even heating.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
No Models Found
The Whirlpool Range Surface Element – W11396790 is the correct replacement for the following model numbers
