Product Description

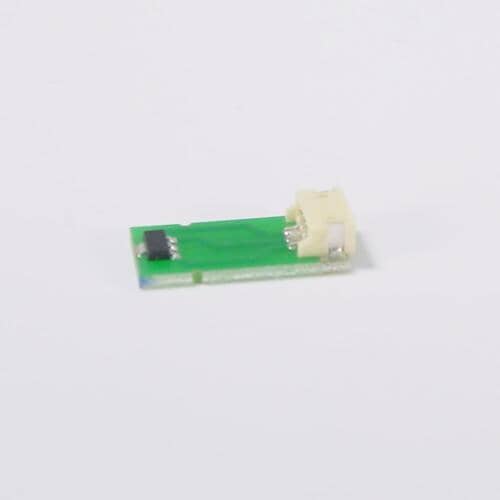

This replacement board offers the functionality required to restore full control system performance in your Saeco or Gaggia espresso machine. The board includes the Hall sensor, which monitors critical grinder or actuator motion, feeding back data to the control system. When the board experiences failure—such as no response, error codes, or inconsistent operation—this part serves as a direct substitute. With correct installation, it helps the machine resume reliable brewing and grinding sequences.
Why Buy From Us?
We supply only verified manufacturer-supplied parts, ensuring compatibility and performance. With fast dispatch, easy returns, and knowledgeable support, you can replace this control board with confidence.
Key Features of Saeco Electric Board with Sensor – 996530022784
- Precise Compatibility: Designed to match the control board layout, connector types and sensor integrations of specified machine models.
- Integrated Hall Sensor: Built-in Hall 506 sensor monitors grinder or actuator steps and communicates directly with the board.
- Direct Replacement: Mounts in the same position and uses identical connectors as the original board for straightforward swap-out.
- Durable Electronics: Engineered to operate within espresso machine conditions—temperature, vibration and electrical duty-cycles.
- Improves Machine Reliability: Restores error-free operation in units with control board or sensor failures.
Technical Specifications
- Part Number: 996530022784
- Sensor Type: Hall 506 magnetic sensor (integrated)
- Board Dimensions: Approx. 105 mm × 70 mm × 20 mm (exact size may vary depending on model mounting)
- Connector Count: 2–4 multi-pin headers (depending on model variant)
- Operating Voltage: Typically 230 V AC mains (check machine model for exact specification)
- Application: Select Saeco / Gaggia super-automatic espresso machines (see fitment list)
- Weight: Approximately 0.15 kg
Common Causes
- Machine fails to power on or display remains blank.
- Grinder or brew station fails to activate despite power and water supply being correct.
- Sensor error codes related to grinder or actuators show on display.
- Strange or erratic behavior—e.g., sudden stops, incorrect boiler/water tank readings, or frequent resets.
- Mechanical impact, surges, or internal fault causing component damage on the board.
Symptoms & Installation Guide
Signs & Symptoms
- No response when buttons are pressed and machine exhibits no activity.
- Grinder motor does not engage though power and hopper are full.
- Error code referencing “sensor” or “hall” appears on display.
- Machine self-resets or cycles without output despite correct inputs.
- Visible damage or burn marks on existing board.
Installation Guide
- Ensure the machine is unplugged from mains and water tank is empty as needed.
- Remove the service panel or cover to access the main control board compartment.
- Disconnect all connectors and ribbon cables attached to the original board, noting their positions or labelling accordingly.
- Unscrew the mounting screws securing the board and carefully remove it from the machine.
- Fit the board labelled 996530022784, secure it in the same mounting location with proper insulation if required.
- Reconnect all plugs and ribbon cables in the exact positions as before.
- Re-attach the service panel, plug the machine back in, and fill the water tank.
- Power on the machine, run a test cycle (without beans) to confirm normal operation, then proceed to full use.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
The Saeco Electric Board With Sensor - 996530022784 is the correct replacement for the following model numbers
This replacement board offers the functionality required to restore full control system performance in your Saeco or Gaggia espresso machine. The board includes the Hall sensor, which monitors critical grinder or actuator motion, feeding back data to the control system. When the board experiences failure—such as no response, error codes, or inconsistent operation—this part serves as a direct substitute. With correct installation, it helps the machine resume reliable brewing and grinding sequences.
Why Buy From Us?
We supply only verified manufacturer-supplied parts, ensuring compatibility and performance. With fast dispatch, easy returns, and knowledgeable support, you can replace this control board with confidence.
Key Features of Saeco Electric Board with Sensor – 996530022784
- Precise Compatibility: Designed to match the control board layout, connector types and sensor integrations of specified machine models.
- Integrated Hall Sensor: Built-in Hall 506 sensor monitors grinder or actuator steps and communicates directly with the board.
- Direct Replacement: Mounts in the same position and uses identical connectors as the original board for straightforward swap-out.
- Durable Electronics: Engineered to operate within espresso machine conditions—temperature, vibration and electrical duty-cycles.
- Improves Machine Reliability: Restores error-free operation in units with control board or sensor failures.
