Repeated clicking from the lower rear area, a brief hum followed by silence, or fans running while neither compartment cools can indicate a compressor start-circuit problem. Do not assume the sealed compressor has failed from sound alone. Inspect supply voltage, condenser airflow, the control command, start relay, overload protector, capacitor where used, and compressor windings. A failing start device and a mechanically locked compressor can produce a similar click-hum-click pattern.
The start relay must match the compressor’s electrical requirements and terminal arrangement. A rattling or scorched relay is suspicious, but electrical testing and inspection of the compressor pins are still needed. When diagnosis identifies the relay and the labels agree, the GE refrigerator compressor start relay WR07X10057 is a specific replacement. Disconnect power before removing a start device because it connects directly to the compressor terminals.
When replacement is actually needed
Replace a start component when it is burnt, electrically open or out of specification, has heat-damaged terminals, or cannot start a compressor whose windings and mechanical condition test correctly. If a new matched relay immediately produces the same hum and overload trip, stop repeated attempts. Continued locked-rotor starts can overheat wiring and the compressor. Verify the overload, capacitor, input voltage, and compressor current before installing more parts.

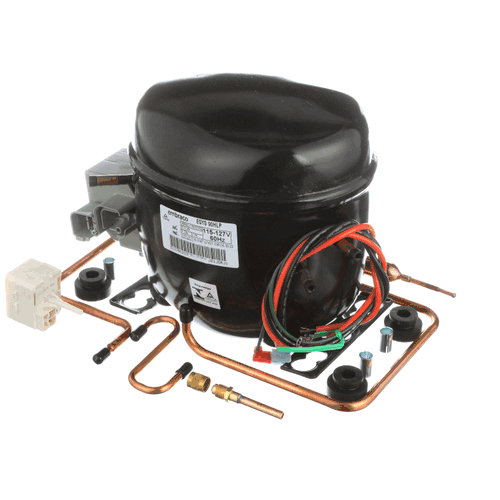

A sealed compressor replacement is different from a relay repair. It requires refrigerant recovery, brazing, evacuation, leak testing, and charging by qualified personnel. A matching GE refrigerator compressor kit WR87X10226 should never be ordered solely because the cabinet is warm. Confirm the frost pattern, refrigerant pressures, winding condition, and start circuit first.
Match the correct GE refrigerator part
Read the original compressor label and the labels on the relay, overload, and capacitor before disconnecting them. Photograph wire positions and the orientation of each start component. Compare the full part number, compressor application, terminal pattern, electrical rating, mounting cover, and whether a listing includes an overload or harness. Similar relay housings can contain different internal characteristics and should not be chosen by shape alone.
Compressor kits can include parts that must be installed together. The GE refrigerator compressor kit WR87X20383 is a sealed-system assembly, not a start relay. Treat those as distinct repair scopes and follow the kit instructions for every accompanying component.
Common problems and direct repair checks
Why does the GE refrigerator click every few minutes but not cool?
Disconnect power and inspect the relay and overload for heat damage, arcing, loose fit, or a burnt odor. Check the compressor windings and verify the supply before replacement. If diagnosis isolates the starter and its number matches, the GE refrigerator compressor start relay WR07X10083 can address a failed relay. A continuing hum and trip after replacement points toward a compressor or supply problem.
Why does the compressor hum briefly and then stop?
The overload may be opening because the compressor cannot start. Check input voltage, start components, condenser fan operation, and winding resistance. Let an overheated compressor cool before retesting. Do not bypass the overload or repeatedly energize the circuit. A correctly matched GE refrigerator compressor start relay WR07X10084 belongs only in a repair where testing confirms that relay has failed.
Why are the lights and fans on while both compartments warm up?
Confirm whether the compressor receives a start command and whether the condenser fan and coils can remove heat. A control fault, relay failure, overload trip, locked compressor, or sealed-system loss can all leave lights operating. If testing identifies the protector, the GE refrigerator compressor overload WR08X10025 is the matched component, but an opening overload may be responding to a deeper compressor or airflow fault.
Why is the compressor shell very hot?
Disconnect power and allow the system to cool. Check for a stalled condenser fan, blocked airflow, repeated failed starts, low supply voltage, and excessive current. Heat alone does not identify the failed component. A sealed GE refrigerator compressor WR87X10207 should be considered only after professional diagnosis confirms an internal or sealed-system failure.
Why did a new start component fail again?
Inspect the compressor terminals for looseness and heat damage, confirm the replacement rating, and measure compressor current. A failing compressor can overload a correct starter. A mismatched starter can also create poor starting torque. If sealed-system replacement is justified, the GE refrigerator compressor kit WR87X10226 must be handled as professional refrigeration work with the specified accompanying parts.
Related GE refrigerator part categories
If the compressor and start circuit test correctly but no start command reaches them, inspect the GE refrigerator control boards collection. Replace electronics only after verifying sensors, wiring, and board output under the correct operating condition.
Poor lower-compartment airflow can overheat the compressor and mimic a major failure. Check the GE refrigerator fans and blowers collection when the condenser fan is stalled, noisy, or obstructed before condemning the compressor.
Symptom and inspection guide
|
Observed symptom
|
Check before ordering
|
Repair decision
|
|
Click, brief hum, click
|
Relay, overload, capacitor, compressor current
|
Stop repeated starts if overload keeps opening
|
|
Fans run but no cooling
|
Compressor command and evaporator frost pattern
|
Separate electrical from sealed-system failure
|
|
Compressor runs very hot
|
Condenser airflow and operating current
|
Correct overheating cause before replacing parts
|
|
No sound from compressor
|
Control output, wiring, overload continuity
|
Verify power path before sealed-system diagnosis
|
Installation and safety
- Unplug the refrigerator and verify power is off before opening the compressor compartment. Capacitors can retain charge, so use the specified safe discharge and testing procedure.
- Photograph every wire and cover. Pull start devices straight from the compressor pins without twisting or bending them, and inspect the pins for corrosion or heat damage.
- Install only the matched relay, overload, and capacitor arrangement. Replace terminal covers and route wiring away from the fan and hot tubing before restoring power.
- Compressor replacement, tubing work, refrigerant handling, evacuation, and charging require qualified sealed-system service. Do not cut or open refrigerant lines as a household repair.
Before ordering
A start relay is a reasonable repair only when the electrical evidence supports it. If a matched start device still trips the overload, preserve the new component and stop further start attempts until compressor current, windings, supply voltage, and sealed-system condition are evaluated. Record the timing of each click, whether the condenser fan runs, and whether the compressor starts after cooling. That information helps distinguish intermittent protection from a control command that is being removed. Never bypass an overload, install an improvised hard-start device, or energize exposed compressor terminals. These shortcuts can damage wiring, defeat protection, and create a shock or fire hazard.
