Bosch B36IT71NNP/11 36 Inch Built-In Fully Flush French Door Refrigerator With 3 Frameless Glass Shelves Read More

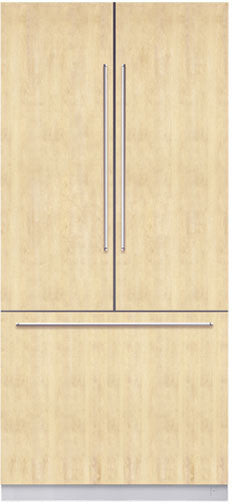

Name: Bosch B36IT71NNP/11 36 Inch Built-In Fully Flush French Door Refrigerator With 3 Frameless Glass Shelves
Brand: Bosch
SKU: B36IT71NNP/11
Availability: InStock

Model Number :B36IT71NNP/11

Appliance Type : Refrigerator

Flexibility
With Bosch Integra Refrigeration, you can customize your kitchen to meet your family's needs. Large families have the option to choose . . . Read More

Overall Dimensions

Overall Width: 36"
Overall Height: 84"
Overall Depth: 24" (Add 3/4" for Stainless Steel unit. Add depth of cabinet for custom panel)
Power Connection Area: 18"

Custom and Stainless Steel Panel Dimensions (The custom panel dimensions are for a standard 1/8" reveal and 4" toe kick installation.)

Width of Panels: 35 3/4"
Toe-kick Height: 4"
Height of Panel: 28 13/32"
Space between Upper and Lower Panels: 1/8"
Custom Panel Width: 17 3/4"
Custom Panel Height: 51 11/32"

Door Clearance

Side Clearance: 13/32"
Door at 90 Degrees: 16 11/32"
Door at 115 Degrees: 9 7/32"

Capacities

Total Volume: 19.6 cu. ft.
Fresh Food Volume: 14.3 cu. ft.
Freezer Volume: 5.3 cu. ft.

Outlook

Color and Finish: Stainless Steel (SS), Custom Panel
Widths Available: 36"
Door Swing: N/A

Freezer Compartment

Shelves: No
Drawers: 2
Door Bins: No

Fresh Food Compartment

Shelves: 3
Drawers: 6
Door Bins: 3
Shelf Divider: 2

General Features

MAXBRIGHT Lighting System: 4 Halogen Lights
Temperature Controlled Drawer: No
Carbon Air Filter: Yes
Cool Door: No
SUPERCOOL: Yes
SUPERFREEZE: Yes
Economy Mode: Yes
Vacation Mode: Yes
Sabbath Mode: Yes
Electronic Controls: Yes
Water Filter: Yes
Water Change Indicator: Yes
Internal Filtered Ice Maker: Yes
Dispenser On/Off: Yes
External Cubed/Crushed Ice and Water Dispenser: No
Roller Shelves: No
Glass Door: No
Display Shelf: No
DUALTEMP: N/A
Temperature Settings: N/A

Special Features

Fully Integrated: Yes
OPTIFLEX Hinge: Yes
Compressor: 2
Evaporator: 2
Energy Star Qualified: Yes
Pitcher Holder Flap: N/A

Technical Data

Voltage/Frequency: 120V/60 Hz
Energy Consumption kWh/year: 435, 478
Wattage: 588
Recommended Breaker Circuit: 15 Amp

Overall Dimensions

Overall Width: 36"
Overall Height: 84"
Overall Depth: 24" (Add 3/4" for Stainless Steel unit. Add depth of cabinet for custom panel)
Power Connection Area: 18"

Custom and Stainless Steel Panel Dimensions (The custom panel dimensions are for a standard 1/8" reveal and 4" toe kick installation.)

Width of Panels: 35 3/4"
Toe-kick Height: 4"
Height of Panel: 28 13/32"
Space between Upper and Lower Panels: 1/8"
Custom Panel Width: 17 3/4"
Custom Panel Height: 51 11/32"

Door Clearance

Side Clearance: 13/32"
Door at 90 Degrees: 16 11/32"
Door at 115 Degrees: 9 7/32"

Capacities

Total Volume: 19.6 cu. ft.
Fresh Food Volume: 14.3 cu. ft.
Freezer Volume: 5.3 cu. ft.

Outlook

Color and Finish: Stainless Steel (SS), Custom Panel
Widths Available: 36"
Door Swing: N/A

Freezer Compartment

Shelves: No
Drawers: 2
Door Bins: No

Fresh Food Compartment

Shelves: 3
Drawers: 6
Door Bins: 3
Shelf Divider: 2

General Features

MAXBRIGHT Lighting System: 4 Halogen Lights
Temperature Controlled Drawer: No
Carbon Air Filter: Yes
Cool Door: No
SUPERCOOL: Yes
SUPERFREEZE: Yes
Economy Mode: Yes
Vacation Mode: Yes
Sabbath Mode: Yes
Electronic Controls: Yes
Water Filter: Yes
Water Change Indicator: Yes
Internal Filtered Ice Maker: Yes
Dispenser On/Off: Yes
External Cubed/Crushed Ice and Water Dispenser: No
Roller Shelves: No
Glass Door: No
Display Shelf: No
DUALTEMP: N/A
Temperature Settings: N/A

Special Features

Fully Integrated: Yes
OPTIFLEX Hinge: Yes
Compressor: 2
Evaporator: 2
Energy Star Qualified: Yes
Pitcher Holder Flap: N/A

Technical Data

Voltage/Frequency: 120V/60 Hz
Energy Consumption kWh/year: 435, 478
Wattage: 588
Recommended Breaker Circuit: 15 Amp
