Parts Diagram for:

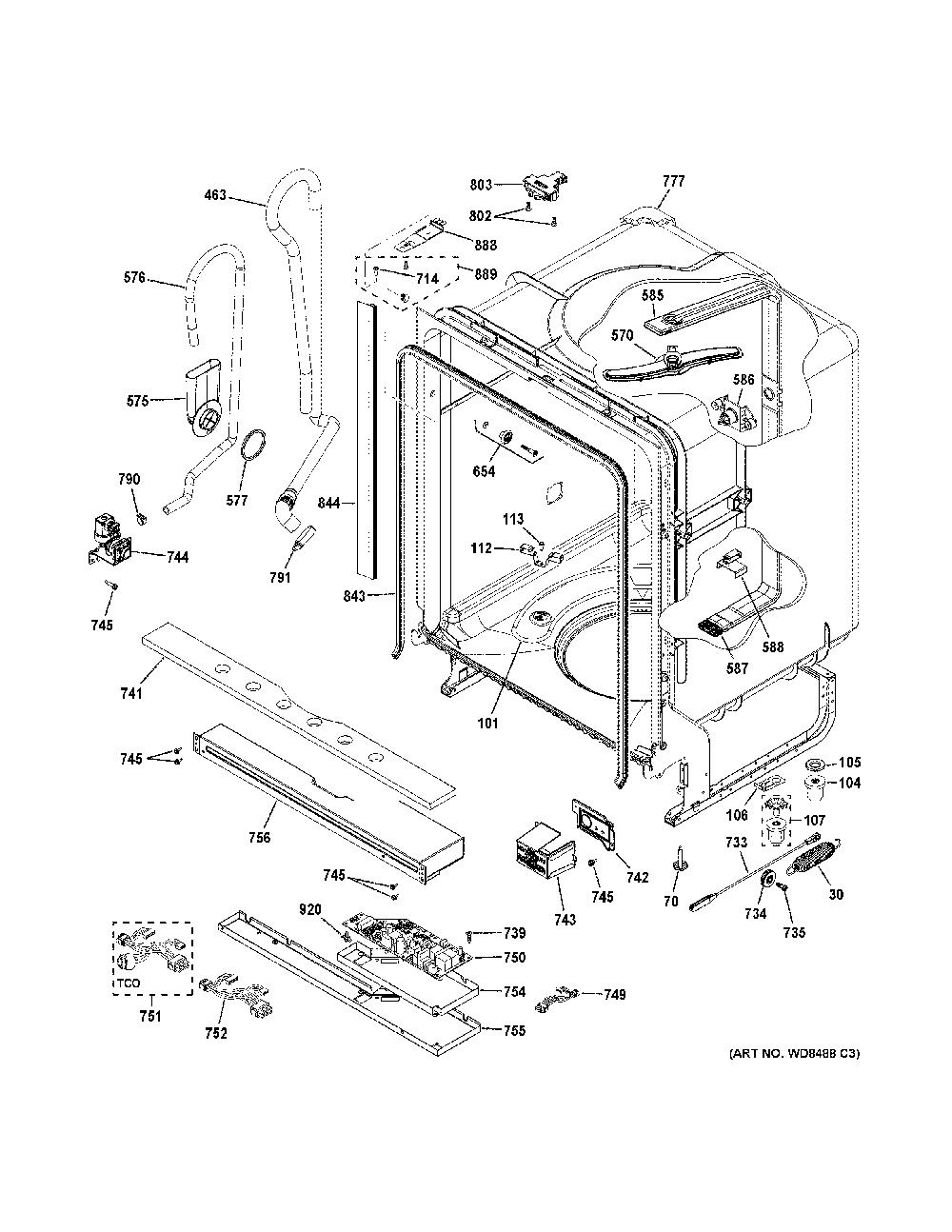

GE GDF540HMF6ES: Body Parts
See parts diagram(s) for GE GDF540HMF6ES. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.

View Popular
Sump & filter assembly
Escutcheon & door assembly
Body Parts
Sump & motor mechanism
Lower Rack Assembly
Upper Rack Assembly

Diagram #
30

GE GDF540HMF6ES Dishwasher Door Spring - Genuine OEM

Dishwasher Door Spring for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE. This door spring is for dishwashers.

It applies tension to the dishwasher door through the door hinge to prevent the door from dropping too quickly when you open the dishwasher.

Use caution when installing the door spring because the spring is under tension and could snap. Wear work gloves to protect your hands during this repair.

$18.89

29 In Stock

Diagram #
30

GE GDF540HMF6ES Spring - Genuine OEM

Spring for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$20.89

37 In Stock

Diagram #
70

GE GDF540HMF6ES Leveling Screw - Genuine OEM

Leveling Screw for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$14.89

31 In Stock

Diagram #
101

GE GDF540HMF6ES Heating Element Assembly - Genuine OEM

Heating Element Assembly for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$42.89

Over 50 In Stock

Diagram #
104

GE GDF540HMF6ES Nut Tower Heater - Genuine OEM

Nut Tower Heater for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$14.89

47 In Stock

Diagram #
105

GE GDF540HMF6ES Heating Element Washer - Genuine OEM

Heating Element Washer for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$37.89

Diagram #
106

Grounding Plate - nuine OEM

Grounding Plate, manufactured By

$27.89

2 In Stock

Diagram #
107

Washer Heater Assembly (OEM)

OEM Washer Heater Assembly, manufactured by GE

$27.89

2 In Stock

Diagram #
113

GE GDF540HMF6ES Screw - Genuine OEM

Screw for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$27.89

9 In Stock

Diagram #
463

GE GDF540HMF6ES Drain Hose - Genuine OEM

Drain Hose for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$25.89

Over 50 In Stock

Diagram #
570

GE GDF540HMF6ES Upper Spray Arm Kit - Genuine OEM

Upper Spray Arm Kit for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$35.89

22 In Stock

Diagram #
575

GE GDF540HMF6ES Funnel Fill Assembly - Genuine OEM

Funnel Fill Assembly for GE GDF540HMF6ES Dishwasher. Genuine product manufactured by GE.

$59.89

2 In Stock

Diagram #
576

Fill Hose (OEM)

OEM Fill Hose, manufactured by GE

$15.89

3 In Stock
