Parts Diagram for:
GE JDP47BF1BB: 02-COOKTOP

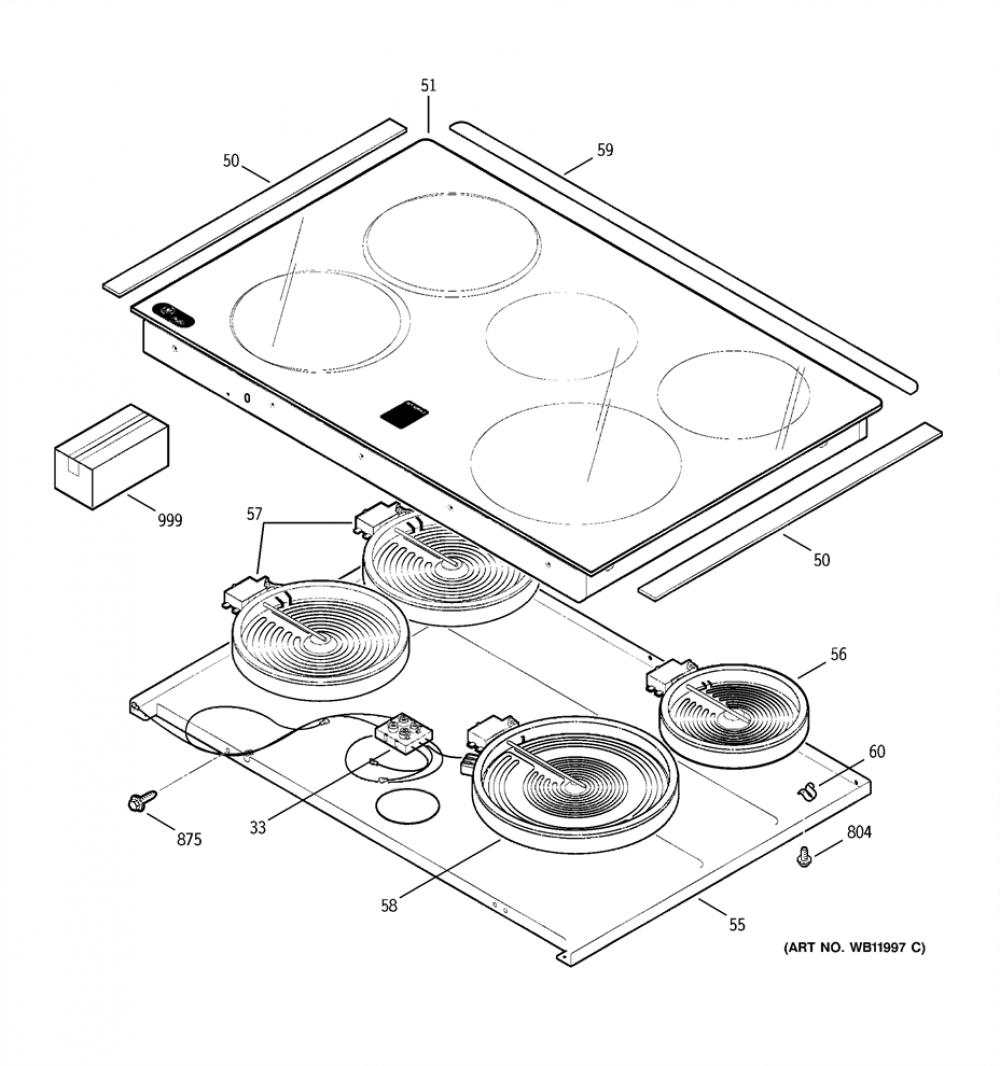

See parts diagram(s) for GE JDP47BF1BB. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.

View Popular
01-CONTROLPANEL
02-COOKTOP
03-BODYPARTS
04-DOOR
05-DOORLOCK
06-COOLINGFAN

Diagram #
56

GE JDP47BF1BB Burner Element Assembly (Medium) - Genuine OEM

Burner Element Assembly (Medium) for GE JDP47BF1BB Electric Range - Oven/Stove. Genuine product manufactured by GE.

$128.89

Diagram #
57

GE JDP47BF1BB Large Haliant Element/Burner - 8inch - Genuine OEM

Large Haliant Element/Burner - 8inch for GE JDP47BF1BB Electric Range - Oven/Stove. Genuine product manufactured by GE. , with sensor. 8 inches, 2000 watts.

$125.89

22 In Stock

Diagram #
58

GE JDP47BF1BB Large Dual Haliant Element - 9 inch - Genuine OEM

Large Dual Haliant Element - 9 inch for GE JDP47BF1BB Electric Range - Oven/Stove. Genuine product manufactured by GE. . 9" Dual. includes limiter. 2500 Watts

$151.89

Diagram #
59

GE JDP47BF1BB Burner Control Knob (Stainless) - Genuine OEM

Burner Control Knob (Stainless) for GE JDP47BF1BB Electric Range - Oven/Stove. Genuine product manufactured by GE.

$34.89

9 In Stock

Diagram #
60

GE JDP47BF1BB Radiant Element Spring Clip - Genuine OEM

Radiant Element Spring Clip for GE JDP47BF1BB Electric Range - Oven/Stove. Genuine product manufactured by GE.

$27.89

2 In Stock

Diagram #
875

Screw (OEM)

The Screw is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$14.89

10 In Stock
