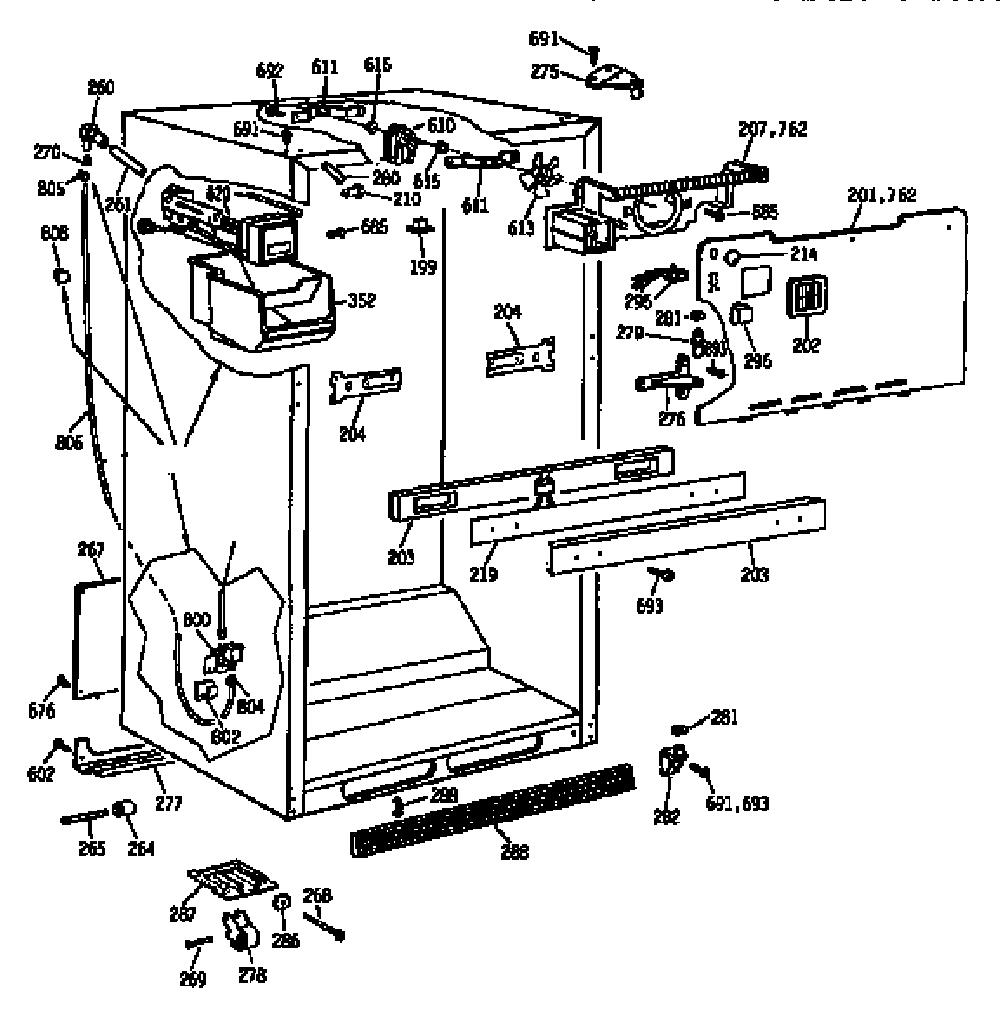

Parts Diagram for GE TBX18J1SGRAD: Cabinet Assembly

See parts diagram(s) for GE TBX18J1SGRAD. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.

View Popular
Freezer Door
Fresh Food Door
Cabinet Assembly
Shelf Components
Compartment Separator
Unit Assembly
Icemaker

GE TBX18J1SGRAD Replacement Parts (OEM) Cabinet Assembly

Diagram #
18

Screw (OEM) 12 Pack

The Customized Screw is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$30.89

1 In Stock

Diagram #
18A

Screw (OEM) 12 Pack

$30.89

1 In Stock

Diagram #
21

GE TBX18J1SGRAD End Cap - Genuine OEM

End Cap for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE. This freezer door shelf rail is for refrigerators.

It snaps into place on the door to hold items on the door shelf.

Follow the instructions in the owner's manual when installing this part.

$28.89

Over 50 In Stock

Diagram #
21

GE TBX18J1SGRAD Freezer Door Shelf Rail - Genuine OEM

Freezer Door Shelf Rail for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE. This freezer door shelf rail is for refrigerators.

It snaps into place on the door to hold items on the door shelf.

Follow the instructions in the owner's manual when installing this part.

$28.89

46 In Stock

Diagram #
23

GE TBX18J1SGRAD Freezer Door Gasket (White) Genuine OEM

Freezer Door Gasket (White) for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$140.89

4 In Stock

Diagram #
104

GE TBX18J1SGRAD Refrigerator Door Seal/Gasket -white - Genuine OEM

Refrigerator Door Seal/Gasket -white for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$119.89

20 In Stock

Diagram #
108

GE TBX18J1SGRAD Refrigerator Door Shelf Rail (Upper/Lower) Genuine OEM

Refrigerator Door Shelf Rail (Upper/Lower) for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE. This door shelf rail is for refrigerators.

It snaps into place on the door to hold items on the door shelf.

Follow the instructions in the owner's manual when installing this part.

$51.89

6 In Stock

Diagram #
126

Door Shelf (OEM) Front

The Door Shelf is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$32.89

33 In Stock

Diagram #
150

Screw (OEM) 13 Pack

OEM Screw (13 Pack), manufactured by GE

$27.89

19 In Stock

Diagram #
205

Shelf Assembly (OEM)

OEM Shelf Assembly, manufactured by GE

$45.89

3 In Stock

Diagram #
211

GE TBX18J1SGRAD Shelf Support - Genuine OEM

Shelf Support for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$25.89

Diagram #
257

GE TBX18J1SGRAD Screw Pack - Genuine OEM

Screw Pack for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$34.89

1 In Stock

Diagram #
270

Fill Tube Clamp (OEM)

OEM Fill Tube Clamp, manufactured by GE

$28.89

1 In Stock

Diagram #
281

GE TBX18J1SGRAD Washer - Genuine OEM

Washer for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$31.89

14 In Stock

Diagram #
301

GE TBX18J1SGRAD Temperature Control Knob - Genuine OEM

Temperature Control Knob for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$35.89

Diagram #
352

GE TBX18J1SGRAD Ice Bucket Assembly Genuine OEM

Ice Bucket Assembly for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$26.89

33 In Stock

Diagram #
435A

GE TBX18J1SGRAD Frosted Light Bulb (40watt) - Genuine OEM

Frosted Light Bulb (40watt) for GE TBX18J1SGRAD Refrigerator. Genuine Product, Whirlpool manufactured the original product for your GE TBX18J1SGRAD.

$14.89

Over 100 In Stock

Diagram #
435

Socket and Terminal (OEM)

The Socket is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$17.89

29 In Stock

Diagram #
435

GE TBX18J1SGRAD Light Socket - Genuine OEM

Light Socket for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$16.89

Over 50 In Stock

Diagram #
566

GE TBX18J1SGRAD Screw - Genuine OEM

Screw for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$14.89

16 In Stock

Diagram #
570

Ap Screw (OEM) 818 AB HXW 5/4 S

OEM Screw (818 AB HXW 5/4 S), manufactured by GE

$27.89

3 In Stock

Diagram #
609

GE TBX18J1SGRAD Fridge Door Light Switch Genuine OEM

Fridge Door Light Switch for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$15.89

30 In Stock

Diagram #
610

GE TBX18J1SGRAD Evaporator Fan Motor Kit - Genuine OEM

Evaporator Fan Motor Kit for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$48.89

Diagram #
613A

GE TBX18J1SGRAD Evaporator Fan Blade - Genuine OEM

Evaporator Fan Blade for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$88.89

8 In Stock

Diagram #
613

GE TBX18J1SGRAD Fan Blade - Genuine OEM

Fan Blade for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$25.89

21 In Stock

Diagram #
618

GE TBX18J1SGRAD Defrost Heater Kit - Genuine OEM

Defrost Heater Kit for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

Note: This kit Includes the defrost heater, wires, and crimp connectors.

$123.89

4 In Stock

Diagram #
618

Defrost Heater Kit (OEM)

OEM Defrost Heater Kit, manufactured by GE

$123.89

5 In Stock

Diagram #
620

Defrost Thermostat (OEM)

OEM Defrost Thermostat, manufactured by GE

$40.89

5 In Stock

Diagram #
620

Defrost Thermostat (OEM)

OEM Defrost Thermostat, manufactured by GE

$40.89

5 In Stock

Diagram #
626

GE TBX18J1SGRAD Power Cord - Genuine OEM

Power Cord for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$31.89

Diagram #
626A

Clamp Cable (OEM)

OEM Clamp Cable, manufactured by GE

$27.89

1 In Stock

Diagram #
648

GE TBX18J1SGRAD Defrost Control - Genuine OEM

Defrost Control for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$74.89

8 In Stock

Diagram #
650

GE TBX18J1SGRAD Condenser Fan Motor and Hardware - Genuine OEM

Condenser Fan Motor and Hardware for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$241.89

20 In Stock

Diagram #
676

GE TBX18J1SGRAD Screw - Genuine OEM

Screw for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$14.89

3 In Stock

Diagram #
680

Screw (OEM)

OEM Screw, manufactured by GE

$27.89

1 In Stock

Diagram #
685

GE TBX18J1SGRAD Screw - Genuine OEM

Screw for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$14.89

4 In Stock

Diagram #
693

Screw (OEM)

OEM Screw, manufactured by GE

$31.89

2 In Stock

Diagram #
725

GE TBX18J1SGRAD Compressor Kit (R-12) - Genuine OEM

Compressor Kit (R-12) for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$793.89

Diagram #
729

GE TBX18J1SGRAD Run Capacitor Genuine OEM

Run Capacitor for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$48.89

Over 100 In Stock

Diagram #
733

GE TBX18J1SGRAD Relay - Genuine OEM

Relay for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$26.89

23 In Stock

Diagram #
737

Stud (OEM)

OEM Stud, manufactured by GE

$16.89

3 In Stock

Diagram #
737A

Grommet Mounting (OEM)

OEM Grommet Mounting, manufactured by GE

$15.89

1 In Stock

Diagram #
740

Drier (OEM)

The Drier is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$76.89

1 In Stock

Diagram #
750

Screw (OEM)

OEM Screw, manufactured by GE

$15.89

6 In Stock

Diagram #
762

Gasket Cover (OEM)

OEM Gasket Cover, manufactured by GE

$28.89

10 In Stock

Diagram #
804

GE TBX18J1SGRAD Nut - Genuine OEM

Nut for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$16.89

Diagram #
805

Clamp Cable (OEM)

OEM Clamp Cable, manufactured by GE

$27.89

1 In Stock

Diagram #
806

Water Line (OEM) 1/4

The Water Line is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$31.89

4 In Stock

Diagram #
806

GE TBX18J1SGRAD Water Line (1/4 Inch) - Genuine OEM

Water Line (1/4 Inch) for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE.

$31.89

4 In Stock

Diagram #
820

GE TBX18J1SGRAD Ice Maker Assembly Kit Genuine OEM

Ice Maker Assembly Kit for GE TBX18J1SGRAD Refrigerator. Genuine product manufactured by GE. . Kit includes ice maker, 4 pin round plug in connector, 6 pin plug in connector, fill tube, and fill cup. This kit replaces many older style ice makers.

Note: May need additional parts such as new mounting bracket, screw and fill cup.

$191.89

Over 100 In Stock
