Product Description

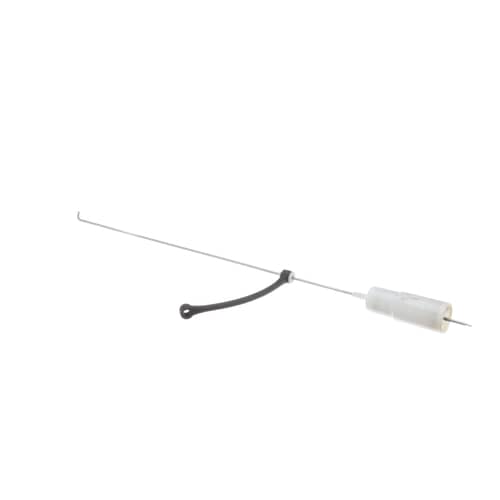

The GE Rear Suspension Rod & Spring Assembly – WH16X10150 restores proper suspension for the washer tub by replacing the fatigued or broken rear rod and associated spring. When the washer vibrates excessively, ‘walks’ across the floor, or paws heavily during spin this assembly addresses the core suspension mechanism. Installation involves removing the rear panel, supporting the tub, detaching the worn rod/spring combo and fitting the new assembly with correct alignment. Once installed, the washer operates smoothly with greatly reduced vibration and noise.
We offer verified manufacturer-specification parts with trusted compatibility, reliable availability and knowledgeable support. With fast dispatch, easy returns and proper fitment, you can complete your repair confidently.
Key Features of GE Rear Suspension Rod & Spring Assembly – WH16X10150
- Exact Fit: Matches original mounting locations, spring tension and rod length for direct compatibility.
- Improved Stability: Minimises tub sway and floor movement during high-speed spin cycles.
- Durable Construction: Designed to handle repeated load and spin forces without premature failure.
- Quiet Operation: Helps eliminate thumping, crashing or loud vibrations from unbalanced tubs.
- Stress-Reduction on Components: Protects bearings, motor mount and cabinet from excessive vibration wear.
Technical Specifications
- Part Number: WH16X10150
- Type: Rear suspension rod and spring assembly
- Application: Rear mount for washer tub or washer/dryer combo tub in select GE appliance models
- Typical Dimensions: Approx. 1¾″ height × 7″ width × 25″ length
- Weight: Approx. 1 lb
- Installation Location: Rear section inside the washer cabinet, connecting tub to frame
- Recommended Maintenance: Replace when rod or spring shows wear, separation, or tub movement is excessive
Common Causes
- Excessive vibration, shaking or ‘walking’ of washer during spin due to worn rear suspension.
- Loud thumping or crashing sounds inside washer when tub tries to spin under load.
- Visible tilt or misalignment of washer tub when empty.
- Stress on front suspension rods or springs caused by failure of rear assembly.
Symptoms & Installation Guide
Signs & Symptoms
- Washer vibrates strongly during spin, moving across the floor or shaking the cabinet.
- Loud impact noises during spin cycle as tub swings or hits frame.
- Failure to complete spin or load becomes unbalanced frequently.
- Tub appears to lean toward rear wall or feels unstable when turned manually.
- Spring on original rod appears stretched, cracked or disconnected from mount.
Installation Guide
- Unplug the washer and shut off water supply (if combo unit includes water line).
- Remove the access panel (rear or top) to reach the tub-to-frame mounting area.
- Support the tub under the bottom to prevent drop when rod/spring removed.
- Detach the old rear suspension rod and spring assembly from its mounts; remove any retaining screws or clips.
- Fit the new WH16X10150 rod and spring, ensuring the spring is seated correctly and the rod mount aligns flush with frame plate.
- Re-assemble panel, restore power and water supply, then run an empty spin cycle to confirm tub stays level, vibration is minimal and washer remains stable.
Return Policy
- Hassle-free returns within 30 days of purchase.
- Items must be unused and in original packaging.
- Quick refunds issued after inspection of the returned product.
- Free replacement offered for defective or damaged items.
- Dedicated support team ensures a smooth and transparent return process.
Compatible Models
Locate your appliance’s model number on the manufacturer’s label and use it to check part-model compatibility before ordering.
Where to find my model number?
| Brand | Model Number | Model Description | Exploded View |
|---|---|---|---|
No Models Found
The GE Washer Rear Suspension Rod and Spring - WH16X10150 is the correct replacement for the following model numbers
The GE Rear Suspension Rod & Spring Assembly – WH16X10150 restores proper suspension for the washer tub by replacing the fatigued or broken rear rod and associated spring. When the washer vibrates excessively, ‘walks’ across the floor, or paws heavily during spin this assembly addresses the core suspension mechanism. Installation involves removing the rear panel, supporting the tub, detaching the worn rod/spring combo and fitting the new assembly with correct alignment. Once installed, the washer operates smoothly with greatly reduced vibration and noise.
We offer verified manufacturer-specification parts with trusted compatibility, reliable availability and knowledgeable support. With fast dispatch, easy returns and proper fitment, you can complete your repair confidently.
Key Features of GE Rear Suspension Rod & Spring Assembly – WH16X10150
- Exact Fit: Matches original mounting locations, spring tension and rod length for direct compatibility.
- Improved Stability: Minimises tub sway and floor movement during high-speed spin cycles.
- Durable Construction: Designed to handle repeated load and spin forces without premature failure.
- Quiet Operation: Helps eliminate thumping, crashing or loud vibrations from unbalanced tubs.
- Stress-Reduction on Components: Protects bearings, motor mount and cabinet from excessive vibration wear.
