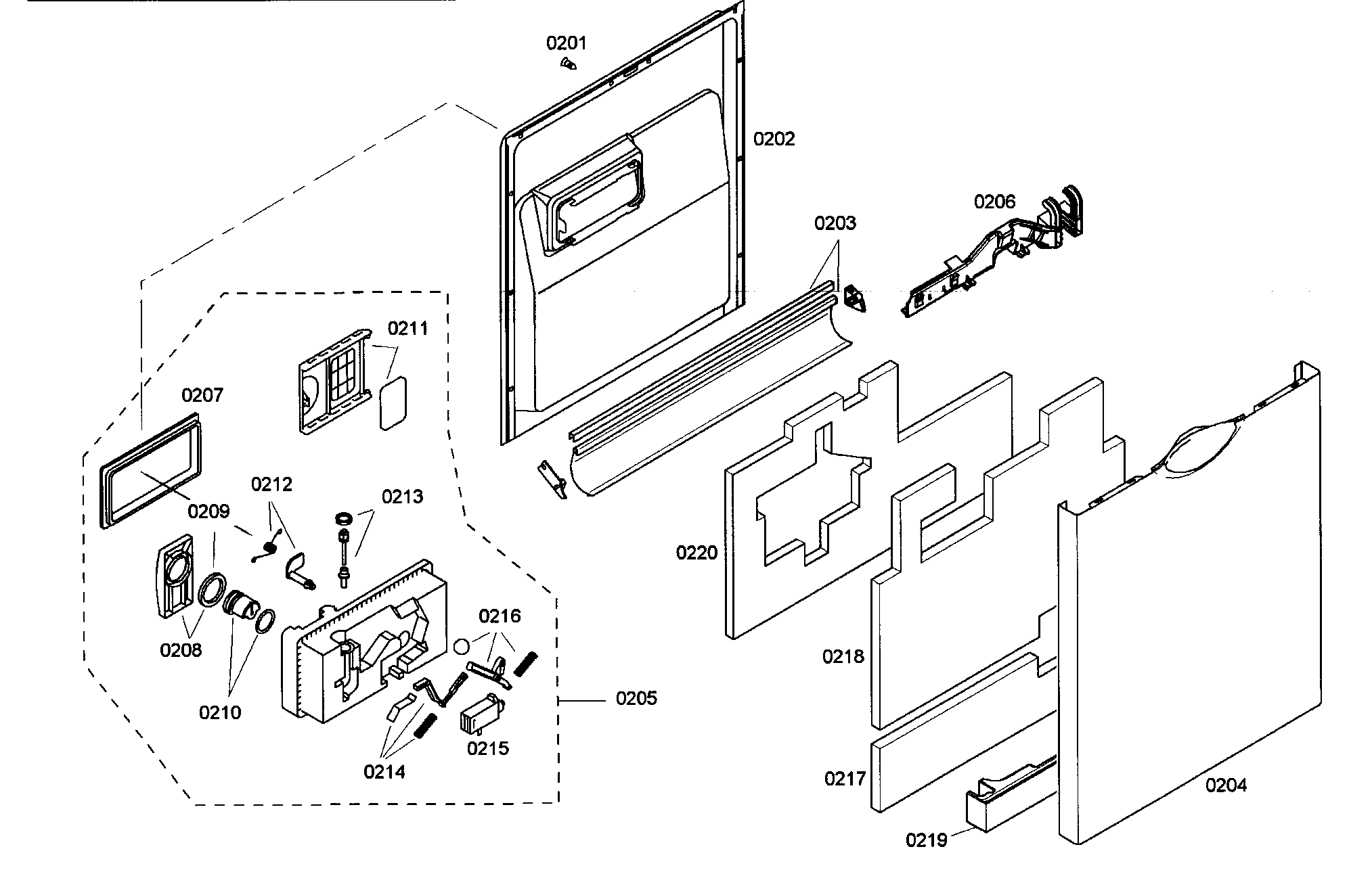

Diagram # 216
Zip Code UPDATE
Please enter United States zip code into the field provided and click the "update" button to receive a shipping estimate.
More Parts From The Diagram
Includes a locking clip to attach directly to the dishrack. Wheels do not come with axel. The axel is part of the lower rack. Color: gray. Approximate measurements: About 1-1/2 inches in diameter and with the clip it is approximately an inch wide.
Check valve 00165262 prevents water in the drain hose from flowing back into the tub.
Unplug the dishwasher and shut off the water supply before installing this part. Wear work gloves to protect your hands.
This float (part number 00165301) is for dishwashers.
Float 00165301 rises with the water level, activating the float switch to shut off the water supply if the water level gets too high.
Wear work gloves to protect your hands when installing this part.
This terminal block cover (part number 00640477) is for dishwashers.
Terminal block cover 00640477 covers the housing for the terminal block.
Unplug the dishwasher or shut off the house circuit breaker before installing this part. Wear work gloves to protect your hands.
Sump to Water Inlet Hose carries drain water from the dishwasher to the drain.
Shut off the water supply and unplug the dishwasher before installing this part. Follow the instructions in the installation guide to correctly install the new drain hose. Wear work gloves to protect your hands during this repair.
Detergent dispenser cover seals the detergent in the dispenser until the cover latch releases to dispense the detergent during the dishwashing cycle.
Unplug the dishwasher or shut off the house circuit breaker for the dishwasher before installing this part. Wear work gloves to protect your hands during this repair.
